4.8.2.4.2 Axis 3D Geometry

The 'Axis' representation using 'Curve3D' representation type is predominately used to align material profile sets to geometric representations of standard beams, columns, members, pipes, ducts and other longitudinal elements.

The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

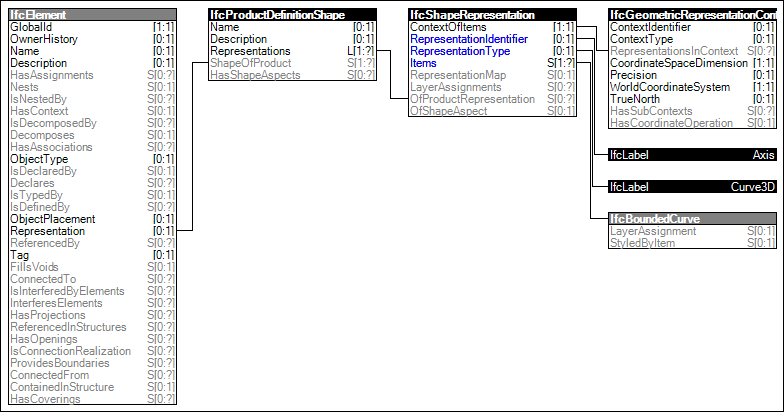

Figure 72 illustrates an instance diagram.

Axis 3D GeometryIfcElementIfcProductDefinitionShapeIfcShapeRepresentationIfcGeometricRepresentationContextIfcLabelIfcLabelIfcBoundedCurve

Figure 72 — Axis 3D Geometry

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="b894d8cb-fb41-45ec-ba18-72cac6baff34" name="Axis 3D Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
  <Rules>
    <AttributeRule AttributeName="Representation">
      <EntityRules>
        <EntityRule EntityName="IfcProductDefinitionShape">
          <AttributeRules>
            <AttributeRule AttributeName="Representations">
              <EntityRules>
                <EntityRule EntityName="IfcShapeRepresentation">
                  <AttributeRules>
                    <AttributeRule AttributeName="ContextOfItems">
                      <EntityRules>
                        <EntityRule EntityName="IfcGeometricRepresentationContext" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel">
                          <Constraints>
                            <Constraint Expression="Identifier[Value] = 'Axis'" />
                          </Constraints>
                        </EntityRule>
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Type" AttributeName="RepresentationType">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel">
                          <Constraints>
                            <Constraint Expression="Type[Value] = 'Curve3D'" />
                          </Constraints>
                        </EntityRule>
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Items" AttributeName="Items">
                      <EntityRules>
                        <EntityRule EntityName="IfcBoundedCurve" />
                      </EntityRules>
                    </AttributeRule>
                  </AttributeRules>
                </EntityRule>
              </EntityRules>
            </AttributeRule>
            <AttributeRule AttributeName="Name" />
            <AttributeRule AttributeName="Description" />
          </AttributeRules>
        </EntityRule>
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
