Figure 81 — Body SurfaceOrSolidModel Geometry
The Body SurfaceOrSolidModel Geometry is the representation of the 3D shape of a product by surface or solid models and allows for a mixed representation.
The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

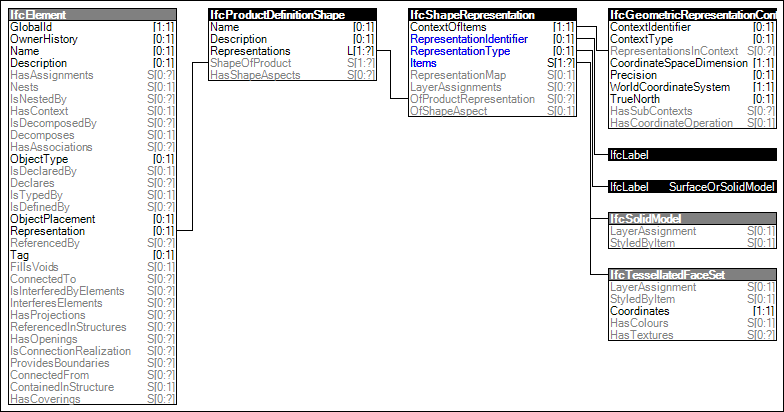

Figure 81 illustrates an instance diagram.
|
Figure 81 — Body SurfaceOrSolidModel Geometry |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="fbbb70d8-52ee-4d90-972e-9ddb4c0a11ab" name="Body SurfaceOrSolidModel Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
<Rules>
<AttributeRule AttributeName="Representation">
<EntityRules>
<EntityRule EntityName="IfcProductDefinitionShape">
<AttributeRules>
<AttributeRule AttributeName="Representations">
<EntityRules>
<EntityRule EntityName="IfcShapeRepresentation">
<AttributeRules>
<AttributeRule AttributeName="ContextOfItems">
<EntityRules>
<EntityRule EntityName="IfcGeometricRepresentationContext" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Type" AttributeName="RepresentationType">
<EntityRules>
<EntityRule EntityName="IfcLabel">
<Constraints>
<Constraint Expression="Type[Value] = 'SurfaceOrSolidModel'" />
</Constraints>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Items" AttributeName="Items">
<EntityRules>
<EntityRule EntityName="IfcSolidModel" />
<EntityRule EntityName="IfcTessellatedFaceSet" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="Name" />
<AttributeRule AttributeName="Description" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
