Figure 107 — Enumerated Value

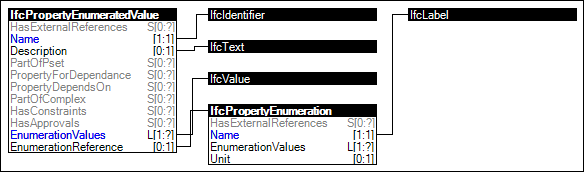

Figure 107 illustrates an instance diagram.
|
Figure 107 — Enumerated Value |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="c148a099-c351-43a8-9266-5f3de0b45a95" name="Enumerated Value" status="sample" owner="System" applicableSchema="IFC4" applicableEntity="IfcPropertyEnumeratedValue">
<Rules>
<AttributeRule RuleID="PropertyName" AttributeName="Name">
<EntityRules>
<EntityRule EntityName="IfcIdentifier" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="Description">
<EntityRules>
<EntityRule EntityName="IfcText" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Value" AttributeName="EnumerationValues">
<EntityRules>
<EntityRule EntityName="IfcValue" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="EnumerationReference">
<EntityRules>
<EntityRule EntityName="IfcPropertyEnumeration">
<AttributeRules>
<AttributeRule RuleID="Reference" AttributeName="Name">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
