4.8.2.6.1 Profile 3D Geometry

The Profile 3D Geometry is the standard representation of the outer profile for elements filling an opening. Examples of such elements include doors and windows. In the case of doors and windows the profile geometry is used to apply the parametric definition of lining and panel dimensions to the profile.

The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

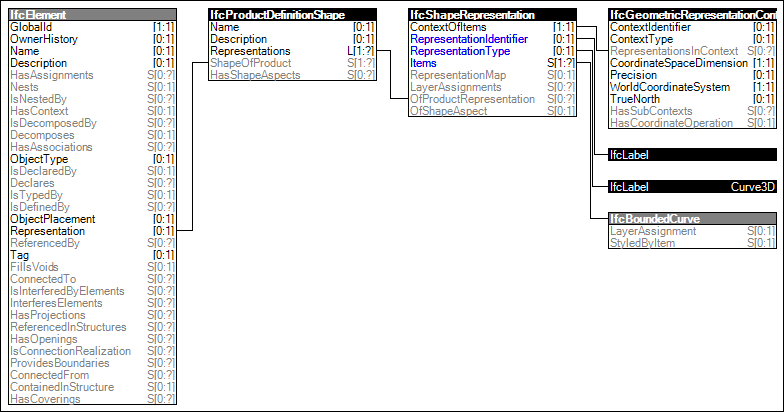

Figure 76 illustrates an instance diagram.

Profile 3D GeometryIfcElementIfcProductDefinitionShapeIfcShapeRepresentationIfcGeometricRepresentationContextIfcLabelIfcLabelIfcBoundedCurve

Figure 76 — Profile 3D Geometry

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="1d897220-740d-4793-9a8d-5d2774c7bc00" name="Profile 3D Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
  <Rules>
    <AttributeRule AttributeName="Representation">
      <EntityRules>
        <EntityRule EntityName="IfcProductDefinitionShape">
          <AttributeRules>
            <AttributeRule AttributeName="Representations">
              <EntityRules>
                <EntityRule EntityName="IfcShapeRepresentation">
                  <AttributeRules>
                    <AttributeRule AttributeName="ContextOfItems">
                      <EntityRules>
                        <EntityRule EntityName="IfcGeometricRepresentationContext" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel">
                          <AttributeRules>
                            <AttributeRule Description="Value=Profile" AttributeName="Value=Profile" />
                          </AttributeRules>
                        </EntityRule>
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Type" AttributeName="RepresentationType">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel">
                          <Constraints>
                            <Constraint Expression="Type[Value] = 'Curve3D'" />
                          </Constraints>
                        </EntityRule>
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Items" AttributeName="Items">
                      <EntityRules>
                        <EntityRule EntityName="IfcBoundedCurve" />
                      </EntityRules>
                    </AttributeRule>
                  </AttributeRules>
                </EntityRule>
              </EntityRules>
            </AttributeRule>
            <AttributeRule AttributeName="Name" />
            <AttributeRule AttributeName="Description" />
          </AttributeRules>
        </EntityRule>
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
