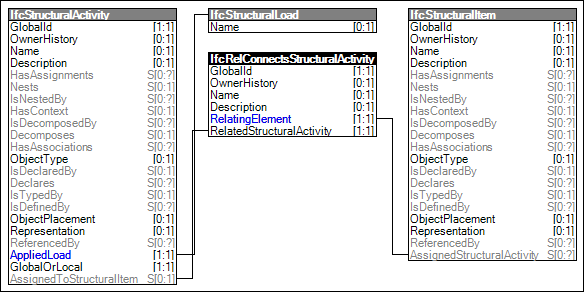

Figure 60 — Structural Activity
Structural activities may be linked to structural items.
Figure 60 illustrates an instance diagram.
|
Figure 60 — Structural Activity |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="9390ca72-d8e2-482b-9986-e0e1d15e7194" name="Structural Activity" status="sample" applicableSchema="IFC4" applicableEntity="IfcStructuralActivity">
<Rules>
<AttributeRule RuleID="AppliedLoad" AttributeName="AppliedLoad">
<EntityRules>
<EntityRule EntityName="IfcStructuralLoad" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="AssignedToStructuralItem">
<EntityRules>
<EntityRule EntityName="IfcRelConnectsStructuralActivity">
<AttributeRules>
<AttributeRule RuleID="RelatingElement" AttributeName="RelatingElement">
<EntityRules>
<EntityRule EntityName="IfcStructuralItem" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
