Figure 99 — Type Body Geometry
The Body representation defines the physical shape of the product type.

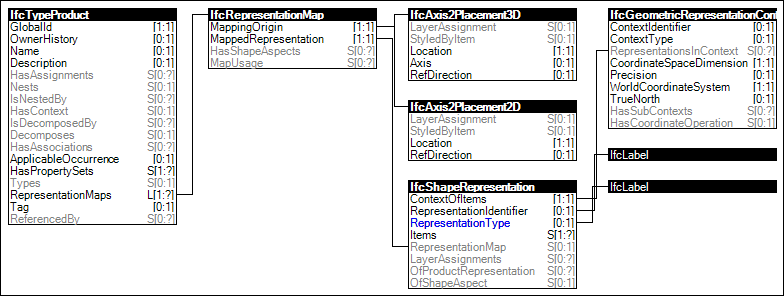

Figure 99 illustrates an instance diagram.
|
Figure 99 — Type Body Geometry |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="3aec2d00-b4bb-476a-a821-fc22b895b531" name="Type Body Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcTypeProduct">
<Rules>
<AttributeRule AttributeName="RepresentationMaps">
<EntityRules>
<EntityRule EntityName="IfcRepresentationMap">
<AttributeRules>
<AttributeRule AttributeName="MappedRepresentation">
<EntityRules>
<EntityRule EntityName="IfcShapeRepresentation">
<AttributeRules>
<AttributeRule AttributeName="ContextOfItems">
<EntityRules>
<EntityRule EntityName="IfcGeometricRepresentationContext" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="RepresentationIdentifier">
<EntityRules>
<EntityRule EntityName="IfcLabel">
<AttributeRules>
<AttributeRule Description="Value=Body" AttributeName="Value=Body" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="RepresentationType" AttributeName="RepresentationType">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Geometry" AttributeName="Items" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="MappingOrigin">
<EntityRules>
<EntityRule EntityName="IfcAxis2Placement3D" />
<EntityRule EntityName="IfcAxis2Placement2D" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
