IFC 4.3.0.0 (IFC4X3) final

6.1.3.42 IfcWallStandardCase

DEPRECATED This definition may be imported, but shall not be exported by applications

6.1.3.42.1 Semantic definition

The IfcWallStandardCase defines a wall with certain constraints for the provision of parameters and with certain constraints for the geometric representation. The IfcWallStandardCase handles all cases of walls, that are extruded vertically:

  • along the positive z axis of the wall object coordinate system, and
  • along the positive z axis of the global (world) coordinate system

and have a single thickness along the path for each wall layer, i.e.:

  • parallel sides for straight walls
  • co-centric sides for curved walls.

and have either:

  • a straight line axis (straight wall), or
  • a circular arc axis (round wall).

and shall not have

  • aggregated components, that is, parts aggregated to a wall by IfcRelAggregates
  • shape representation for 'Body' not being an extrusion, or clipped extrusion

The following parameter have to be provided:

  • Wall height, taken from the depth of extrusion, provided by the geometric representation.
  • Wall thickness, taken from the material layer set usage, attached to the wall
  • Wall offset from axis, taken from the material layer set usage, attached to the wall

The IfcWallStandardCase requires the provision of the wall axis either a straight line that is parallel to the x-axis of the object coordinate system, or a circular arc where the tangent at start is parallel to the x-axis of the object coordinate system. The direction of the wall axis shall be the positive direction of that x-axis.

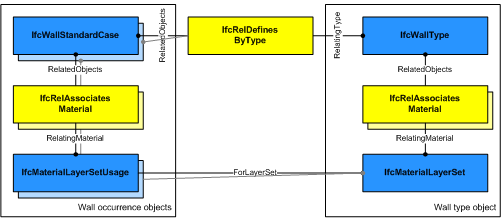

The material of the wall is defined by the IfcMaterialLayerSetUsage and is attached by the IfcRelAssociatesMaterial objectified relationship. It is accessible by the inverse HasAssociations relationship. The material layer set usage has to be given (enforced by where rule).

An 'Axis' and a 'Body' shape representation has to be provided, and it is invalid to exchange a 'Tessellation', 'SurfaceModel', 'Brep' or 'MappedRepresentation' representation for the 'Body' shape representation of the IfcWallStandardCase.

6.1.3.42.2 Entity inheritance

6.1.3.42.3 Attributes

# Attribute Type Description
IfcRoot (4)
1 GlobalId IfcGloballyUniqueId

Assignment of a globally unique identifier within the entire software world.

2 OwnerHistory OPTIONAL IfcOwnerHistory

Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,

3 Name OPTIONAL IfcLabel

Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.

4 Description OPTIONAL IfcText

Optional description, provided for exchanging informative comments.

IfcObjectDefinition (7)
HasAssignments SET [0:?] OF IfcRelAssigns FOR RelatedObjects

Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.

Nests SET [0:1] OF IfcRelNests FOR RelatedObjects

References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).

IsNestedBy SET [0:?] OF IfcRelNests FOR RelatingObject

References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).

HasContext SET [0:1] OF IfcRelDeclares FOR RelatedDefinitions

References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.

IsDecomposedBy SET [0:?] OF IfcRelAggregates FOR RelatingObject

References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).

Decomposes SET [0:1] OF IfcRelAggregates FOR RelatedObjects

References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).

HasAssociations SET [0:?] OF IfcRelAssociates FOR RelatedObjects

Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.

IfcObject (5)
5 ObjectType OPTIONAL IfcLabel

The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.

IsDeclaredBy SET [0:1] OF IfcRelDefinesByObject FOR RelatedObjects

Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.

Declares SET [0:?] OF IfcRelDefinesByObject FOR RelatingObject

Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.

IsTypedBy SET [0:1] OF IfcRelDefinesByType FOR RelatedObjects

Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.

IsDefinedBy SET [0:?] OF IfcRelDefinesByProperties FOR RelatedObjects

Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.

IfcProduct (5)
6 ObjectPlacement OPTIONAL IfcObjectPlacement

This establishes the object coordinate system and placement of the product in space. The placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constrained (e.g. relative to grid axes, or to a linear positioning element). The type of placement is determined by the various subtypes of IfcObjectPlacement. An object placement must be provided if a representation is present.

7 Representation OPTIONAL IfcProductRepresentation

Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.

ReferencedBy SET [0:?] OF IfcRelAssignsToProduct FOR RelatingProduct

Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.

PositionedRelativeTo SET [0:?] OF IfcRelPositions FOR RelatedProducts

No description available.

ReferencedInStructures SET [0:?] OF IfcRelReferencedInSpatialStructure FOR RelatedElements

No description available.

IfcElement (13)
8 Tag OPTIONAL IfcIdentifier

The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.

FillsVoids SET [0:1] OF IfcRelFillsElement FOR RelatedBuildingElement

Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element.

ConnectedTo SET [0:?] OF IfcRelConnectsElements FOR RelatingElement

Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.

IsInterferedByElements SET [0:?] OF IfcRelInterferesElements FOR RelatedElement

Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.

InterferesElements SET [0:?] OF IfcRelInterferesElements FOR RelatingElement

Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.

HasProjections SET [0:?] OF IfcRelProjectsElement FOR RelatingElement

Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.

HasOpenings SET [0:?] OF IfcRelVoidsElement FOR RelatingBuildingElement

Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated.

IsConnectionRealization SET [0:?] OF IfcRelConnectsWithRealizingElements FOR RealizingElements

Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship.

ProvidesBoundaries SET [0:?] OF IfcRelSpaceBoundary FOR RelatedBuildingElement

Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces.

ConnectedFrom SET [0:?] OF IfcRelConnectsElements FOR RelatedElement

Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.

ContainedInStructure SET [0:1] OF IfcRelContainedInSpatialStructure FOR RelatedElements

Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierarchical, i.e. an element may only be assigned directly to zero or one spatial structure.

HasCoverings SET [0:?] OF IfcRelCoversBldgElements FOR RelatingBuildingElement

Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.

HasSurfaceFeatures SET [0:?] OF IfcRelAdheresToElement FOR RelatingElement

Reference to the IfcRelAdheresToElement relationship that adheres a IfcSurfaceFeature to an element. An element can incorporate zero-to-many surface features in one relationship.

Click to show 34 hidden inherited attributes Click to hide 34 inherited attributes
IfcWall (1)
9 PredefinedType OPTIONAL IfcWallTypeEnum

Predefined generic type for a wall that is specified in an enumeration. There may be a property set given specifically for the predefined types.

Table 6.1.3.42.T

6.1.3.42.4 Formal propositions

Name Description
HasMaterialLayerSetUsage

A valid instance of IfcWallStandardCase relies on the provision of an IfcMaterialLayerSetUsage.

SIZEOF (QUERY(temp <* USEDIN(SELF, 'IFC4X3.IFCRELASSOCIATES.RELATEDOBJECTS') |
              ('IFC4X3.IFCRELASSOCIATESMATERIAL' IN TYPEOF(temp)) AND
              ('IFC4X3.IFCMATERIALLAYERSETUSAGE' IN TYPEOF(temp.RelatingMaterial))
              )) = 1
Table 6.1.3.42.U

6.1.3.42.5 Property sets

  • Pset_ConcreteElementGeneral
    • AssemblyPlace
    • CastingMethod
    • StructuralClass
    • StrengthClass
    • ExposureClass
    • ReinforcementVolumeRatio
    • ReinforcementAreaRatio
    • DimensionalAccuracyClass
    • ConstructionToleranceClass
    • ConcreteCover
    • ConcreteCoverAtMainBars
    • ConcreteCoverAtLinks
    • ReinforcementStrengthClass
  • Pset_Condition
    • AssessmentDate
    • AssessmentCondition
    • AssessmentDescription
    • AssessmentType
    • AssessmentMethod
    • LastAssessmentReport
    • NextAssessmentDate
    • AssessmentFrequency
  • Pset_ConstructionAdministration
    • ProcurementMethod
    • SpecificationSectionNumber
    • SubmittalIdentifer
  • Pset_ConstructionOccurance
    • InstallationDate
    • ModelNumber
    • TagNumber
    • AssetIdentifier
  • Pset_ElementKinematics
    • CyclicPath
    • CyclicRange
    • LinearPath
    • LinearRange
    • MaximumAngularVelocity
    • MaximumConstantSpeed
    • MinimumTime
  • Pset_ElementKinematics
    • CyclicPath
    • CyclicRange
    • LinearPath
    • LinearRange
    • MaximumAngularVelocity
    • MaximumConstantSpeed
    • MinimumTime
  • Pset_EnvironmentalCondition
    • ReferenceAirRelativeHumidity
    • ReferenceEnvironmentTemperature
    • MaximumAtmosphericPressure
    • StorageTemperatureRange
    • MaximumWindSpeed
    • OperationalTemperatureRange
    • MaximumRainIntensity
    • SaltMistLevel
    • SeismicResistance
    • SmokeLevel
    • MaximumSolarRadiation
  • Pset_EnvironmentalImpactIndicators
    • Reference
    • FunctionalUnitReference
    • IndicatorsUnit
    • LifeCyclePhase
    • ExpectedServiceLife
    • TotalPrimaryEnergyConsumptionPerUnit
    • WaterConsumptionPerUnit
    • HazardousWastePerUnit
    • NonHazardousWastePerUnit
    • ClimateChangePerUnit
    • AtmosphericAcidificationPerUnit
    • RenewableEnergyConsumptionPerUnit
    • NonRenewableEnergyConsumptionPerUnit
    • ResourceDepletionPerUnit
    • InertWastePerUnit
    • RadioactiveWastePerUnit
    • StratosphericOzoneLayerDestructionPerUnit
    • PhotochemicalOzoneFormationPerUnit
    • EutrophicationPerUnit
  • Pset_EnvironmentalImpactValues
    • TotalPrimaryEnergyConsumption
    • WaterConsumption
    • HazardousWaste
    • NonHazardousWaste
    • ClimateChange
    • AtmosphericAcidification
    • RenewableEnergyConsumption
    • NonRenewableEnergyConsumption
    • ResourceDepletion
    • InertWaste
    • RadioactiveWaste
    • StratosphericOzoneLayerDestruction
    • PhotochemicalOzoneFormation
    • Eutrophication
    • LeadInTime
    • Duration
    • LeadOutTime
  • Pset_InstallationOccurrence
    • InstallationDate
    • AcceptanceDate
    • PutIntoOperationDate
  • Pset_MaintenanceStrategy
    • AssetCriticality
    • AssetFrailty
    • AssetPriority
    • MonitoringType
    • AccidentResponse
  • Pset_MaintenanceTriggerCondition
    • ConditionTargetPerformance
    • ConditionMaintenanceLevel
    • ConditionReplacementLevel
    • ConditionDisposalLevel
  • Pset_MaintenanceTriggerDuration
    • DurationTargetPerformance
    • DurationMaintenanceLevel
    • DurationReplacementLevel
    • DurationDisposalLevel
  • Pset_MaintenanceTriggerPerformance
    • TargetPerformance
    • PerformanceMaintenanceLevel
    • ReplacementLevel
    • DisposalLevel
  • Pset_ManufacturerOccurrence
    • AcquisitionDate
    • BarCode
    • SerialNumber
    • BatchReference
    • AssemblyPlace
    • ManufacturingDate
  • Pset_ManufacturerTypeInformation
    • GlobalTradeItemNumber
    • ArticleNumber
    • ModelReference
    • ModelLabel
    • Manufacturer
    • ProductionYear
    • AssemblyPlace
    • OperationalDocument
    • SafetyDocument
    • PerformanceCertificate
  • Pset_PrecastConcreteElementFabrication
    • TypeDesignation
    • ProductionLotId
    • SerialNumber
    • PieceMark
    • AsBuiltLocationNumber
    • ActualProductionDate
    • ActualErectionDate
  • Pset_PrecastConcreteElementGeneral
    • TypeDesignation
    • CornerChamfer
    • ManufacturingToleranceClass
    • FormStrippingStrength
    • LiftingStrength
    • ReleaseStrength
    • MinimumAllowableSupportLength
    • InitialTension
    • TendonRelaxation
    • TransportationStrength
    • SupportDuringTransportDescription
    • SupportDuringTransportDocReference
    • HollowCorePlugging
    • CamberAtMidspan
    • BatterAtStart
    • BatterAtEnd
    • Twisting
    • Shortening
    • PieceMark
    • DesignLocationNumber
  • Pset_ReinforcementBarPitchOfWall
    • Description
    • Reference
    • BarAllocationType
    • VerticalBarPitch
    • HorizontalBarPitch
    • SpacingBarPitch
  • Pset_RepairOccurrence
    • RepairContent
    • RepairDate
    • MeanTimeToRepair
  • Pset_Risk
    • RiskName
    • RiskType
    • NatureOfRisk
    • RiskAssessmentMethodology
    • UnmitigatedRiskLikelihood
    • UnmitigatedRiskConsequence
    • UnmitigatedRiskSignificance
    • MitigationPlanned
    • MitigatedRiskLikelihood
    • MitigatedRiskConsequence
    • MitigatedRiskSignificance
    • MitigationProposed
    • AssociatedProduct
    • AssociatedActivity
    • AssociatedLocation
  • Pset_RoadGuardElement PARAPET
    • IsMoveable
    • IsTerminal
    • IsTransition
    • TerminalType
  • Pset_ServiceLife
    • ServiceLifeDuration
    • MeanTimeBetweenFailure
  • Pset_Tolerance
    • ToleranceDescription
    • ToleranceBasis
    • OverallTolerance
    • HorizontalTolerance
    • OrthogonalTolerance
    • VerticalTolerance
    • PlanarFlatness
    • HorizontalFlatness
    • ElevationalFlatness
    • SideFlatness
    • OverallOrthogonality
    • HorizontalOrthogonality
    • OrthogonalOrthogonality
    • VerticalOrthogonality
    • OverallStraightness
    • HorizontalStraightness
    • OrthogonalStraightness
    • VerticalStraightness
  • Pset_Uncertainty
    • UncertaintyBasis
    • UncertaintyDescription
    • HorizontalUncertainty
    • LinearUncertainty
    • OrthogonalUncertainty
    • VerticalUncertainty
  • Pset_WallCommon
    • Reference
    • Status
    • AcousticRating
    • FireRating
    • Combustible
    • SurfaceSpreadOfFlame
    • ThermalTransmittance
    • IsExternal
    • LoadBearing
    • ExtendToStructure
    • Compartmentation
  • Pset_Warranty
    • WarrantyIdentifier
    • WarrantyStartDate
    • IsExtendedWarranty
    • WarrantyPeriod
    • WarrantyContent
    • PointOfContact
    • Exclusions
  • Qto_BodyGeometryValidation
    • GrossSurfaceArea
    • NetSurfaceArea
    • GrossVolume
    • NetVolume
    • SurfaceGenusBeforeFeatures
    • SurfaceGenusAfterFeatures
  • Qto_WallBaseQuantities
    • Length
    • Width
    • Height
    • GrossFootPrintArea
    • NetFootPrintArea
    • GrossSideArea
    • NetSideArea
    • GrossVolume
    • NetVolume
    • GrossWeight
    • NetWeight

6.1.3.42.6 Concept usage

Concept Usage Description
IfcRoot (2)
Revision Control General

Ownership, history, and merge state is captured using IfcOwnerHistory.

Software Identity General

IfcRoot assigns the globally unique ID. In addition it may provide for a name and a description about the concept.

IfcObjectDefinition (9)
Aggregation General

No description available.

Approval Association General

No description available.

Classification Association General

Any object occurrence or object type can have a reference to a specific classification reference, i.e. to a particular facet within a classification system.

Constraint Association General

No description available.

Document Association General

No description available.

Library Association General

No description available.

Material Association General

No description available.

Material Single General

No description available.

Nesting General

No description available.

IfcObject (5)
Assignment to Group General

No description available.

Object Predefined Type General

No description available.

Object Typing General

Any object occurrence can be typed by being assigned to a common object type utilizing this concept. A particular rule, restricting the applicable subtypes of IfcTypeObject that can be assigned, is introduced by overriding this concept at the level of subtypes of IfcObject.

This concept can be applied to the following resources:

Object User Identity General

An attribute Name and optionally Description can be used for all subypes of IfcObject. For those subtypes, that have an object type definition, such as ifcBeam - IfcBeamType, the common Name and optionally Description is associated with the object type.

Property Sets with Override General

Any object occurrence can hold property sets, either directly at the object occurrence as element specific property sets, or at the object type, as type property sets. In this case, the properties that are provided to the object occurrence are the combinations of element specific and type properties. In case, that the same property (within the same property set, is defined both, in occurrence and type properties, the property value of the occurrence property overrides the property value of the type property.

IfcProduct (17)
Body Geometry General

The body or solid model geometric representation of an IfcProduct is typically defined using a Tessellation or Brep. Subtypes may provide recommendations on other representation types that may be used. The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

Box Geometry General

No description available.

CoG Geometry General

No description available.

Mapped Geometry General

No description available.

Product Geometric Representation General

The geometric representation of any IfcProduct is provided by the IfcProductDefinitionShape allowing multiple geometric representations. It uses the Product Placement concept utilizing IfcLocalPlacement to establish an object coordinate system, within all geometric representations are founded.

Product Geometry Colour General

No description available.

Product Geometry Layer General

No description available.

Product Local Placement General

No description available.

Product Relative Positioning General

If the IfcProduct Product Placement is placed relative to an IfcPositioningElement this relationship covers the information on which IfcPositioningElement positions the IfcProduct.

Product Span Positioning General

No description available.

Product Topology Representation General

No description available.

Property Sets for Objects General

This concept can be applied to the following resources:

Quantity Sets General

This concept can be applied to the following resources:

Reference Geometry General

No description available.

Reference SweptSolid Geometry General

No description available.

Reference SweptSolid PolyCurve Geometry General

No description available.

Reference Tessellation Geometry General

No description available.

IfcElement (45)
Body AdvancedBrep Geometry General

An IfcElement (so far no further constraints are defined at the level of its subtypes or by view definitions) may be represented as a single or multiple boundary representation models, which include advanced surfaces, usually refered to as NURBS surfaces. The 'AdvancedBrep' representation allows for the representation of complex free-form element shape.

Body AdvancedSwept Directrix Geometry General

No description available.

Body AdvancedSwept DiskSolid PolyCurve Geometry General

No description available.

Body AdvancedSwept Tapered Geometry General

No description available.

Body AdvancedSweptSolid Geometry General

No description available.

Body Brep Geometry General

Any IfcElement (so far no further constraints are defined at the level of its subtypes) may be represented as a single or multiple Boundary Representation models (which are restricted to be faceted Brep's with or without voids). The Brep representation allows for the representation of complex element shape.

Brep representation
Figure 6.1.3.42.A — Building element body boundary representation
Body CSG Geometry General

Any IfcElement (so far no further constraints are defined at the level of its subtypes) may be represented a CSG primitive or CSG tree. The CSG representation allows for the representation of complex element shape.

Body Clipping Geometry General

No description available.

Body SectionedSolidHorizontal General

No description available.

Body SurfaceModel Geometry General

Any IfcElement (so far no further constraints are defined at the level of its subtypes) may be represented as a single or multiple surface models, based on either shell or face based surface models. It may also include tessellated models.

surface model
Figure 6.1.3.42.B — Element surface model representation
Body SurfaceOrSolidModel Geometry General

Any IfcElement (so far no further constraints are defined at the level of its subtypes) may be represented as a mixed representation, including surface and solid models.

Body SweptSolid Composite Geometry General

No description available.

Body SweptSolid CompositeCurve Geometry General

No description available.

Body SweptSolid Geometry General

No description available.

Body SweptSolid ParameterizedProfile Geometry General

No description available.

Body SweptSolid PolyCurve Geometry General

No description available.

Body Tessellation Geometry Reference View

Any IfcElement (so far no further constraints are defined at the level of its subtypes) may be represented as a single or multiple tessellated surface models, in particular triangulated surface models.

Box Geometry General
bounding box
Figure 6.1.3.42.C — Building element box representation
CoG Geometry General

The 'CoG', Center of Gravity, shape representation is used as a means to verify the correct import by comparing the CoG of the imported geometry with the explicily provided CoG created during export.

Element Covering General

No description available.

Element Interference General

No description available.

Element Nesting General

A host element can nest connected components. This should be used when there is a specific position or form factor to attach specific elements.

Element Occurrence Attributes General

No description available.

Element Openings General

No description available.

Element Projecting General

No description available.

Element Voiding General

No description available.

Element Voiding Features General

No description available.

FootPrint Annotation Geometry General

No description available.

FootPrint GeomSet PolyCurve Geometry General

No description available.

FootPrint Geometry General

No description available.

Lighting Geometry General

No description available.

Mapped Geometry General

Any IfcElement (so far no further constraints are defined at the level of its subtypes) may be represented using the 'MappedRepresentation'. This shall be supported as it allows for reusing the geometry definition of a type at all occurrences of the same type. The results are more compact data sets.

The same constraints, as given for 'SurfaceOrSolidModel', 'SurfaceModel', 'Tessellation', 'Brep', and 'AdvancedBrep' geometric representation, shall apply to the IfcRepresentationMap.

Object Typing General

This concept can be applied to the following resources:

Product Grid Placement General

No description available.

Product Linear Placement General

Product placement with a Product Linear Placement template. It defines the local coordinate system based on the curve which is referenced by IfcLinearPlacement.RelativePlacement which is an IfcAxis2PlacementLinear.Location using an IfcPointByDistanceExpression.BasisCurve. The local coordinate system is based on the tangent of the curve at Location, its normal in the global Z plane and the cross product of the aforementioned vectors.

Product Local Placement General

The object placement for any subtype of IfcElement is defined by the IfcObjectPlacement, either IfcLocalPlacement or IfcGridPlacement, which defines the local object coordinate system that is referenced by all geometric representations of that IfcElement.

Profile 3D Geometry General

No description available.

Profile Geometry General

No description available.

Property Sets for Objects General

This concept can be applied to the following resources:

Spatial Containment General

This concept can be applied to the following resources:

Surface 3D Geometry General

No description available.

Surface Feature Adherence General

No description available.

Surface Geometry General

No description available.

Surface Sectioned Geometry General

No description available.

Surface Tessellation Geometry General

No description available.

IfcBuiltElement (3)
Object Typing General

This concept can be applied to the following resources:

Product Assignment General

This concept can be applied to the following resources:

Surface 3D Geometry General

Some IfcBuildingElement may be represented by an surface as an abstract geometric representation. See each subtype for specific guidance.

IfcWall (14)
Axis 2D Geometry General

The wall axis is represented by a two-dimensional open curve within a particular shape representation. The 'Axis' shape representation is only used to locate the material layer set along the axis, if the IfcMaterialLayerSetUsage is applied to the IfcWall. In this case, the wall axis is used to apply the material layer set usage parameter to the wall geometry.

straight wall axis
Figure 6.1.3.42.D — Wall axis straight

Figure 6.1.3.42.D illustrates an axis representation for a straight wall. In case of a straight wall, the set of items shall include a single geometric representation item of type IfcPolyline or IfcTrimmedCurve with the BasisCurve being an IfcLine. The IfcPolyline or IfcTrimmedCurve shall be parallel (here in a special case co-linear) to the x-axis of the object coordinate system. The direction shall be identical to the direction of the x-axis.

curved wall axis
Figure 6.1.3.42.E — Wall axis curved

Figure 6.1.3.42.E illustrates an axis representation for a curved wall. In case of a curved wall, the set of items shall include a single geometric representation item of type IfcTrimmedCurve. The curve shall have a BasisCurve of type IfcCircle. The tangent of the IfcTrimmedCurve shall be parallel at start to the x-axis of the object coordinate system. The direction shall be identical to the direction of the x-axis.

Body Clipping Geometry General

The following additional constraints apply to the 'SweptSolid' representation, when an IfcMaterialLayerSetUsage is assigned to the IfcSlab:

Figure 6.1.3.42.F illustrates a clipping for a straight wall using an IfcPolygonalBoundedHalfSpace as SecondOperand in the IfcBooleanClippingResult.

Figure 6.1.3.42.G illustrates a clipping for a curved wall using an IfcHalfSpaceSolid as SecondOperand in the IfcBooleanClippingResult.

straight wall clipping
Figure 6.1.3.42.F — Wall body clipping straight
curved wall clipping
Figure 6.1.3.42.G — Wall body clipping curved
Body SweptSolid Geometry General

The following additional constraints apply to the 'SweptSolid' representation:

Additional constraints apply to the 'SweptSolid' representation, when an IfcMaterialLayerSetUsage is used:

  • Extrusion: The profile shall be extruded vertically, i.e., in the direction of the z-axis of the co-ordinate system of the referred spatial structure element. It might be further constraint to be in the direction of the global z-axis in implementers agreements. The extrusion axis shall be perpendicular to the swept profile, i.e. pointing into the direction of the z-axis of the Position of the IfcExtrudedAreaSolid.

The profile of a wall is described in the ground view and extruded vertically. The profile (also identical with the foot print of the wall) is defined by the IfcArbitraryClosedProfileDef (excluding its subtypes). The profile is given with all wall connections already resolved.

Figure 6.1.3.42.H illustrates a body representation for a straight wall. In case of a straight wall, the two sides of the profile shall be parallel to the wall axis, that is, the wall has a single unchanged thickness.

Figure 6.1.3.42.I illustrates a body representation for a curved wall. In case of a curved wall, the two sides of the profile shall be parallel (with defined offset) to the wall axis, that is, the wall has a single unchanged thickness.

straight wall body
Figure 6.1.3.42.H — Wall body extrusion straight
curved wall body
Figure 6.1.3.42.I — Wall body extrusion curved
Element Decomposition General

A wall may decomposed into parts such as framing and panels on each side. For efficiency, each part may reuse geometry using the mapped geometry concept.

voiding
Figure 6.1.3.42.J — A wall decomposed into parts.

This concept can be applied to the following resources:

Element Voiding General

As shown in Figure 6.1.3.42.K, openings within the composite wall are directly assigned to IfcWall using IfcRelVoidsElement pointing to IfcOpeningElement and apply to all aggregated parts. If individual parts have cutting and other voiding features, then the decomposed parts have a separate voiding relationship IfcRelVoidsElement pointing to IfcVoidingFeature.

dot_neato IfcWall IfcWall IfcRelVoidsElement IfcRelVoidsElement IfcRelVoidsElement->IfcWall RelatingBuildingElement IfcOpeningElement IfcOpeningElement IfcRelVoidsElement->IfcOpeningElement RelatedOpeningElement IfcRelAggregates IfcRelAggregates IfcRelAggregates->IfcWall RelatingObject IfcBuildingElementPart IfcBuildingElementPart IfcRelAggregates->IfcBuildingElementPart RelatedObjects[1] IfcRelVoidsElement2 IfcRelVoidsElement IfcRelVoidsElement2->IfcBuildingElementPart RelatingBuildingElement IfcVoidingFeature IfcVoidingFeature IfcRelVoidsElement2->IfcVoidingFeature RelatedOpeningElement
Figure 6.1.3.42.K — How individual parts being cut may be expressed.
Material Layer Set Usage General

Figure 6.1.3.42.L illustrates assignment of IfcMaterialLayerSetUsage and IfcMaterialLayerSet to the IfcWallType and the IfcWall occurrence.

Material layer set and usage
Figure 6.1.3.42.L — Wall Standard Object Typing

Figure 6.1.3.42.M illustrates material layer usage, where:

  • The reference coordinate system is the local coordinate system established by the ObjectPlacement of the IfcWall.
  • The reference axis is the axis defined by the IfcShapeRepresentation with RepresentationType='Axis' as one of the wall's representations.
  • The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is given as a distance from this axis.
  • The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is the distance parallel to the reference axis and always within the base (XY) plane of the reference coordinate system. A positive value of IfcMaterialLayerSetUsage.OffsetFromReferenceLine would then point into the positive y-axis of the reference coordinate system.
  • The IfcMaterialLayerSetUsage.DirectionSense defines how the IfcMaterialLayer's are assigned to the reference axis. POSITIVE means in direction to the positive y-axis of the reference coordinate system.
  • The Thickness of each IfcMaterialLayer is provided starting from the OffsetFromReferenceLine and in the direction given by DirectionSense. It is applied without any gap or overlap between two consecutive layers. The TotalThickness of the IfcMaterialLayerSet is the sum of all layer thicknesses.
  • The IfcMaterialLayerSetUsage.LayerSetDirection is always AXIS2.
  • The local placement of the wall uses the the x/y plane for the profile, and the z-axis as the extrusion direction for the wall body.
wall material layer set
Figure 6.1.3.42.M — Wall material layers
Material Set General

This concept can be applied to the following resources:

  • LoadBearing
  • Insulation
Object Typing General

This concept can be applied to the following resources:

Path Connectivity General

This concept can be applied to the following resources:

Product Assignment General

This concept can be applied to the following resources:

Property Sets for Objects General

This concept can be applied to the following resources:

Quantity Sets General

This concept can be applied to the following resources:

Spatial Containment General

The IfcWall, as any subtype of IfcBuildingElement, may participate alternatively in one of the two different containment relationships:

  • the Spatial Containment (defined here), or
  • the Element Composition.
Surface Geometry General

The 'Surface' can be used to define a surfacic model of the building (e.g. for analytical purposes, or for reduced Level of Detail representation).

Click to show 95 hidden inherited concepts Click to hide 95 inherited concepts
IfcWallStandardCase (4)
Axis 2D Geometry General

The wall axis is represented by a two-dimensional open curve within a particular shape representation. The wall axis is used to apply the material layer set usage parameter to the wall geometry.

straight wall axis
Figure 6.1.3.42.N

Figure 289 — Wall axis straight

curved wall axis
Figure 6.1.3.42.O

Figure 290 — Wall axis curved

Body Clipping Geometry General

The following constraints apply to the 'Clipping' representation:

  • Solid: see standard geometric representation
  • Profile: see standard geometric representation
  • Extrusion: see standard geometric representation
  • Boolean result: The IfcBooleanClippingResult shall be supported, allowing for Boolean differences between the swept solid (here IfcExtrudedAreaSolid) and one or several IfcHalfSpaceSolid (or subtypes).

Figure 6.1.3.42.P illustrates a clipping for a straight wall using an IfcPolygonalBoundedHalfSpace as SecondOperand in the IfcBooleanClippingResult.

Figure 294 illustrates a clipping for a curved wall using an IfcHalfSpaceSolid as SecondOperand in the IfcBooleanClippingResult.

straight wall clipping
Figure 6.1.3.42.P — Wall body clipping straight

Figure 294 — Wall body clipping curved

Body SweptSolid Geometry General

The following additional constraints apply to the 'SweptSolid' representation:

  • Solid: IfcExtrudedAreaSolid is required,
  • Profile: IfcArbitraryClosedProfileDef and IfcRectangleProfileDef shall be supported.
  • Extrusion: The profile shall be extruded vertically, i.e., in the direction of the z-axis of the co-ordinate system of the referred spatial structure element. It might be further constraint to be in the direction of the global z-axis in implementers agreements. The extrusion axis shall be perpendicular to the swept profile, i.e. pointing into the direction of the z-axis of the Position of the IfcExtrudedAreaSolid.

The profile of a wall is described in the ground view and extruded vertically. The profile (also identical with the foot print of the wall) is defined by the IfcArbitraryClosedProfileDef (excluding its subtypes). The profile is given with all wall connections already resolved.

Figure 6.1.3.42.Q illustrates a body representation for a straight wall. In case of a straight wall, the two sides of the profile shall be parallel to the wall axis, that is, the wall has a single unchanged thickness.

Figure 292 illustrates a body representation for a curved wall. In case of a curved wall, the two sides of the profile shall be parallel (with defined offset) to the wall axis, that is, the wall has a single unchanged thickness.

straight wall body
Figure 6.1.3.42.Q — Wall body extrusion straight

Figure 292 — Wall body extrusion curved

Material Layer Set Usage General

Multi-layer walls can be represented by referring to several IfcMaterialLayer's within the IfcMaterialLayerSet that is referenced from the IfcMaterialLayerSetUsage.

Material information can also be given at the IfcWallType, defining the common attribute data for all occurrences of the same type. It is then accessible by the inverse IsDefinedBy relationship pointing to IfcSlabType.HasAssociations and via IfcRelAssociatesMaterial.RelatingMaterial.

The IfcWallType should then have a unique IfcMaterialLayerSet, that is referenced by the IfcMaterialLayerSetUsage assigned to all occurrences of this IfcWallType.

Material layer set and usage
Figure 6.1.3.42.R

Figure 287 — Wall Standard Object Typing

Figure 6.1.3.42.S illustrates material layer usage, where the following conventions shall be met:

  • The reference coordinate system is the local coordinate system established by the ObjectPlacement of the IfcWallStandardCase.
  • The reference axis is the axis defined by the IfcShapeRepresentation with RepresentationType='Axis' as one of the Representation.Representations of the IfcWallStandardCase.
  • The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is given as a distance from this axis.
  • The IfcMaterialLayerSetUsage.OffsetFromReferenceLine is the distance parallel to the reference axis and always within the base (XY) plane of the reference coordinate system. A positive value of IfcMaterialLayerSetUsage.OffsetFromReferenceLine would then point into the positive y-axis of the reference coordinate system.
  • The IfcMaterialLayerSetUsage.DirectionSense defines how the IfcMaterialLayer's are assigned to the reference axis. POSITIVE means in direction to the positive y-axis of the reference coordinate system.
  • The Thickness of each IfcMaterialLayer is provided starting from the OffsetFromReferenceLine and in the direction given by DirectionSense. It is applied without any gap or overlap between two consecutive layers. The TotalThickness of the IfcMaterialLayerSet is the sum of all layer thicknesses.
  • The IfcMaterialLayerSetUsage.LayerSetDirection is always AXIS2.
roof slab material layer set
Figure 6.1.3.42.S — Wall material layers
Table 6.1.3.42.V

6.1.3.42.7 Formal representation

ENTITY IfcWallStandardCase
 SUBTYPE OF (IfcWall);
 WHERE
	HasMaterialLayerSetUsage : SIZEOF (QUERY(temp <* USEDIN(SELF, 'IFC4X3.IFCRELASSOCIATES.RELATEDOBJECTS') |
              ('IFC4X3.IFCRELASSOCIATESMATERIAL' IN TYPEOF(temp)) AND
              ('IFC4X3.IFCMATERIALLAYERSETUSAGE' IN TYPEOF(temp.RelatingMaterial))
              )) = 1;
END_ENTITY;

6.1.3.42.8 References

6.1.3.42.9 Changelog

  • where_rules, HasMaterialLayerSetUsage
  • where_rules, WR1
  • deprecated, Changed from False to True
