IfcBlock

Semantic definitions at the entity

Entity definition

The IfcBlock is a Construction Solid Geometry (CSG) 3D primitive. It is defined by a position and a positve distance along the three orthogonal axes. The inherited Position attribute has the IfcAxisPlacement3D type and provides:

SELF\IfcCsgPrimitive3D.Position: The location and orientation of the axis system for the primitive.
SELF\IfcCsgPrimitive3D.Position.Location: The block has one vertex at location and the edges are aligned with the placement axes in the positive sense.

The XLength, YLength, and ZLength attributes define the size of the IfcBlock along the three axes.

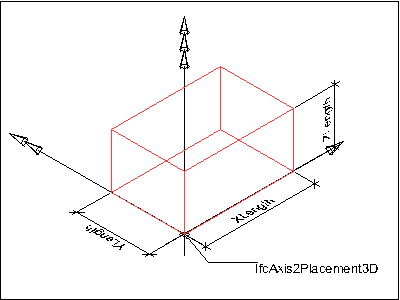

	Figure 307 illustrates geometric parameters of a block where the block positioned within its own placement coordinate system. The values for XLength, YLength, and ZLength are applied to the positive direction of the X, Y, and Z axis.
Figure 307 — Block geometry

NOTE Definition according to ISO/CD 10303-42:1992
A block is a solid rectangular parallelepiped, defined with a location and placement coordinate system. The block is specified by the positive lengths x, y, and z along the axes of the placement coordinate system, and has one vertex at the origin of the placement coordinate system.

NOTE Entity adapted from block defined in ISO 10303-42.

HISTORY New entity in IFC2x3.

Texture definition

On each side face, textures are aligned facing upright. On the top and bottom faces, textures are aligned facing front-to-back. Textures are stretched or repeated to the extent of each face according to RepeatS and RepeatT.

Figure 308 illustrates default texture mapping with a clamped texture (RepeatS=False and RepeatT=False). The image on the left shows the texture where the S axis points to the right and the T axis points up. The image on the right shows the texture applied to the geometry where the X axis points back to the right, the Y axis points back to the left, and the Z axis points up.

Side	Normal	Origin X	Origin Y	Origin Z	S Axis	T Axis
Left	-X	0	+YLength	0	-Y	+Z
Right	+X	+XLength	0	0	+Y	+Z
Front	-Y	0	0	0	+X	+Z
Back	+Y	+XLength	+YLength	0	-X	+Z
Bottom	-Z	0	+YLength	0	+X	-Y
Top	+Z	0	0	+ZLength	+X	+Y

Figure 308 — Block textures

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
2	XLength	IfcPositiveLengthMeasure	[1:1]	The size of the block along the placement X axis. It is provided by the inherited axis placement through SELF\IfcCsgPrimitive3D.Position.P[1].	X
3	YLength	IfcPositiveLengthMeasure	[1:1]	The size of the block along the placement Y axis. It is provided by the inherited axis placement through SELF\IfcCsgPrimitive3D.Position.P[2].	X
4	ZLength	IfcPositiveLengthMeasure	[1:1]	The size of the block along the placement Z axis. It is provided by the inherited axis placement through SELF\IfcCsgPrimitive3D.Position.P[3].	X

Inherited definitions from supertypes

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRepresentationItem
	LayerAssignment	IfcPresentationLayerAssignment @AssignedItems	S[0:1]	Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.	X
	StyledByItem	IfcStyledItem @Item	S[0:1]	Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.	X
IfcGeometricRepresentationItem
IfcCsgPrimitive3D
1	Position	IfcAxis2Placement3D	[1:1]	The placement coordinate system to which the parameters of each individual CSG primitive apply.	X
	Dim :=3	IfcDimensionCount	[1:1]	The space dimensionality of this geometric representation item, it is always 3.	X
IfcBlock
2	XLength	IfcPositiveLengthMeasure	[1:1]	The size of the block along the placement X axis. It is provided by the inherited axis placement through SELF\IfcCsgPrimitive3D.Position.P[1].	X
3	YLength	IfcPositiveLengthMeasure	[1:1]	The size of the block along the placement Y axis. It is provided by the inherited axis placement through SELF\IfcCsgPrimitive3D.Position.P[2].	X
4	ZLength	IfcPositiveLengthMeasure	[1:1]	The size of the block along the placement Z axis. It is provided by the inherited axis placement through SELF\IfcCsgPrimitive3D.Position.P[3].	X

Formal representations

XSD Specification

 <xs:element name="IfcBlock" type="ifc:IfcBlock" substitutionGroup="ifc:IfcCsgPrimitive3D" nillable="true"/>

 <xs:complexType name="IfcBlock">

  <xs:complexContent>

   <xs:extension base="ifc:IfcCsgPrimitive3D">

    <xs:attribute name="XLength" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

    <xs:attribute name="YLength" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

    <xs:attribute name="ZLength" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcBlock

 SUBTYPE OF (IfcCsgPrimitive3D);

  XLength : IfcPositiveLengthMeasure;

  YLength : IfcPositiveLengthMeasure;

  ZLength : IfcPositiveLengthMeasure;

END_ENTITY;

 EXPRESS-G diagram

	Quader
	Block
	Parallélépipède
