IfcCurveBoundedSurface

Semantic definitions at the entity

Entity definition

The IfcCurveBoundedSurface is a parametric surface with boundaries defined by p-curves, that is, a curve which lies on the basis of a surface and is defined in the parameter space of that surface. The p-curve is a special type of a composite curve segment and shall only be used to bound a surface.

The outer boundary shall be either defined by:

an IfcOuterBoundaryCurve a closed composite curve on surface for the definition of an outer boundary, in this case the attribute ImplicitOuter has to be set to FALSE, or
an implicit boundary of the bounded surface, e.g. the u1, u2, v1, v2 of IfcRectangularTrimmedSurface, in this case the attribute ImplicitOuter has to be set to TRUE.

NOTE Some surfaces, like IfcCylindricalSurface does not have identifiable implicit boundaries.

NOTE Definition according to ISO/CD 10303-42:1992
The curve bounded surface is a parametric surface with curved boundaries defined by one or more boundary curves. One of the boundary curves may be the outer boundary; any number of inner boundaries is permissible. The region of the curve bounded surface in the basis surface is defined to be the portion of the basis surface in the direction of N x T from any point on the boundary, where N is the surface normal and T the boundary curve tangent vector at this point. The region so defined shall be arcwise connected.

NOTE Entity adapted from curve_bounded_surface defined in ISO 10303-42.

HISTORY New entity in IFC4.

Informal Propositions:

Each curve in the set of Boundaries shall be closed.
No two curves in the set of Boundaries shall intersect.
At most one of the boundary curves may enclose any other boundary curve. If an IfcOuterBoundaryCurve is designated, only that curve may enclose any other boundary curve.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
1	BasisSurface	IfcSurface	[1:1]	The surface to be bounded.	X
2	Boundaries	IfcBoundaryCurve	S[1:?]	The outer boundary of the surface.	X
3	ImplicitOuter	IfcBoolean	[1:1]		X

Inherited definitions from supertypes

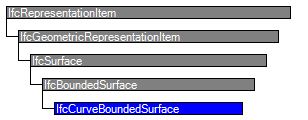

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRepresentationItem
	LayerAssignment	IfcPresentationLayerAssignment @AssignedItems	S[0:1]	Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.	X
	StyledByItem	IfcStyledItem @Item	S[0:1]	Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.	X
IfcGeometricRepresentationItem
IfcSurface
	Dim :=3	IfcDimensionCount	[1:1]	The space dimensionality of IfcSurface. It is always a three-dimensional geometric representation item.	X
IfcBoundedSurface
IfcCurveBoundedSurface
1	BasisSurface	IfcSurface	[1:1]	The surface to be bounded.	X
2	Boundaries	IfcBoundaryCurve	S[1:?]	The outer boundary of the surface.	X
3	ImplicitOuter	IfcBoolean	[1:1]		X

Formal representations

XSD Specification

 <xs:element name="IfcCurveBoundedSurface" type="ifc:IfcCurveBoundedSurface" substitutionGroup="ifc:IfcBoundedSurface" nillable="true"/>

 <xs:complexType name="IfcCurveBoundedSurface">

  <xs:complexContent>

   <xs:extension base="ifc:IfcBoundedSurface">

    <xs:sequence>

     <xs:element name="BasisSurface" type="ifc:IfcSurface" nillable="true"/>

     <xs:element name="Boundaries">

      <xs:complexType>

       <xs:sequence>

        <xs:element ref="ifc:IfcBoundaryCurve" maxOccurs="unbounded"/>

       </xs:sequence>

       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcBoundaryCurve"/>

       <xs:attribute ref="ifc:cType" fixed="set"/>

       <xs:attribute ref="ifc:arraySize" use="optional"/>

      </xs:complexType>

     </xs:element>

    </xs:sequence>

    <xs:attribute name="ImplicitOuter" type="ifc:IfcBoolean" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcCurveBoundedSurface

 SUBTYPE OF (IfcBoundedSurface);

  BasisSurface : IfcSurface;

  Boundaries : SET [1:?] OF IfcBoundaryCurve;

  ImplicitOuter : IfcBoolean;

END_ENTITY;

 EXPRESS-G diagram

Item	Change	Description
IFC2x3 to IFC4
IfcCurveBoundedSurface	ADDED
IFC4 Addendum 1
IfcCurveBoundedSurface
ImplicitOuter	MODIFIED	Type changed from BOOLEAN to IfcBoolean.

	Durch Kurven begrenzte Fläche
	Curve Bounded Surface
