IfcGroup

Semantic definitions at the entity

Entity definition

IfcGroup is an generalization of any arbitrary group. A group is a logical collection of objects. It does not have its own position, nor can it hold its own shape representation. Therefore a group is an aggregation under some non-geometrical / topological grouping aspects.

EXAMPLE An example for a group is a system, since it groups elements under the aspect of their role, regardless of their position in a building. One of the most important usage of a group representing a system is the IfcDistributionSystem, that groups distribution components, such as space heaters and valves into a heating system.

A group can hold any collection of objects, the relationship IfcRelAssignsToGroup is used to establish the group collection. Objects within a group are products, processes, controls, resources, actors or other groups, thus groups can be nested. An object can be part of zero, one, or many groups. Grouping relationships are not required to be hierarchical nor do they imply a dependency.

Groups are assigned to other objects (such as a process or a resource) by the relationship object that refers to the corresponding object:

Process: assigned using IfcRelAssignsToProcess
Resource: assigned using IfcRelAssignsToResource
Controls: affecting the group using IfcRelAssignsToControl

A group can be exchanged without having already objects within the group collection.

IfcGroup does not define an own object coordinate system, nor does it have an independent shape representation.

NOTE Use IfcRelAggregates together with the appropriate subtypes of IfcProduct to define an aggregation of products that may have its own position and shape representation. This relationship shall be used to create a product breakdown structure.

HISTORY New entity in IFC1.0.

IFC4 CHANGE The inverse IsGroupedBy relationship is set to 0..n

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
	IsGroupedBy	IfcRelAssignsToGroup @RelatingGroup	S[0:?]	Reference to the relationship IfcRelAssignsToGroup that assigns the one to many group members to the IfcGroup object.	X

Inherited definitions from supertypes

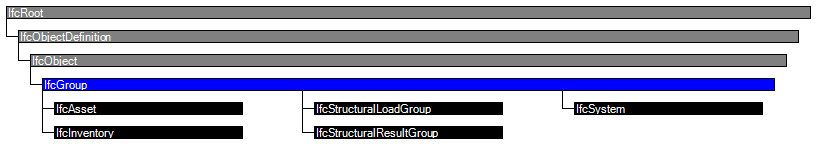

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcObject
5	ObjectType	IfcLabel	[0:1]	The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.	X
	IsDeclaredBy	IfcRelDefinesByObject @RelatedObjects	S[0:1]	Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	Declares	IfcRelDefinesByObject @RelatingObject	S[0:?]	Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	IsTypedBy	IfcRelDefinesByType @RelatedObjects	S[0:1]	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.	X
	IsDefinedBy	IfcRelDefinesByProperties @RelatedObjects	S[0:?]	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.	X
IfcGroup
	IsGroupedBy	IfcRelAssignsToGroup @RelatingGroup	S[0:?]	Reference to the relationship IfcRelAssignsToGroup that assigns the one to many group members to the IfcGroup object.	X

Definitions applying to Common Use Definitions

Instance diagram

Concept usage

Group Assignment

The Group Assignment concept applies to this entity.

The IfcGroup establishes an arbitrary collection of objects through utilizing this concept.

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions
IfcObject
	Object Occurrence Predefined Type	Common Use Definitions
IfcGroup
	Group Assignment	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcGroup" type="ifc:IfcGroup" substitutionGroup="ifc:IfcObject" nillable="true"/>

 <xs:complexType name="IfcGroup">

  <xs:complexContent>

   <xs:extension base="ifc:IfcObject"/>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcGroup

 SUPERTYPE OF(ONEOF(IfcAsset, IfcInventory, IfcStructuralLoadGroup, IfcStructuralResultGroup, IfcSystem))

 SUBTYPE OF (IfcObject);

 INVERSE

  IsGroupedBy : SET OF IfcRelAssignsToGroup FOR RelatingGroup;

END_ENTITY;

 EXPRESS-G diagram

Link to this page

Item	Change	Description
IFC2x3 to IFC4
IfcGroup
OwnerHistory	MODIFIED	Instantiation changed to OPTIONAL.
