IfcPropertySetTemplate

Natural language names
deMerkmalsliste - Vorlage
enProperty Set Template
frModèle d'ensemble de propriété
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcPropertySetTemplateADDED
Semantic definitions at the entity
Entity definition

IfcPropertySetTemplate defines the template for all dynamically extensible property sets represented by IfcPropertySet. The property set template is a container of property templates within a property tree. The individual property templates are interpreted according to their Name attribute and shall have no values assigned.

NOTE  By convention an IfcPropertySetTemplate can also be used as a template for an IfcElementQuantity, being a particular type of a property set definition.

Property set templates can form part of a property library used and declared within a project. Depending on the TemplateType the IfcPropertySetTemplate defines a template for:

The inherited HasContext inverse relation to IfcRelDeclares is used to declare the IfcPropertySetTemplate within a project library. If included in an exchange data set it can then be traversed through the IfcProjectLibrary. The Defines inverse relation to IfcRelDefinesByTemplate is provided to keep the definition relationship between the IfcPropertySetTemplate and the one to many IfcPropertySet's, for which it provides the template. Figure 121 illustrates relationships used for property set templates.



property set template

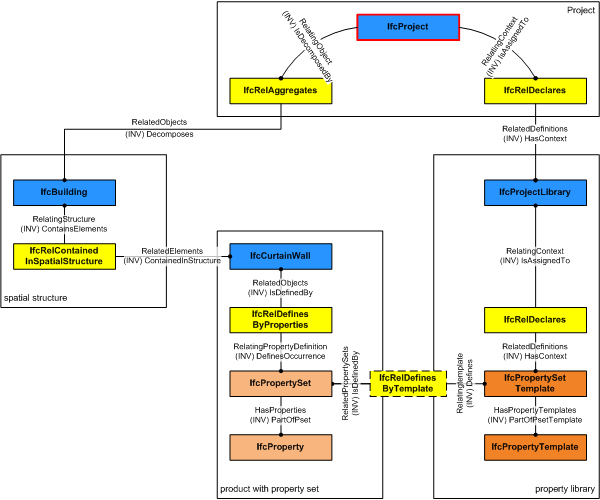

Figure 121 — Property set template relationships

Between IfcProperty's within the HasProperties set of IfcPropertySet having the same Name attribute value as the IfcPropertyTemplate's within the HasPropertyTemplates set of IfcPropertySetTemplate an implicit definition relationship is established that assigns the template to the individual properties.

HISTORY  New entity in IFC4.
Attribute definitions
#AttributeTypeCardinalityDescription C
5TemplateTypeIfcPropertySetTemplateTypeEnum[0:1] Property set type defining whether the property set is applicable to a type (subtypes of IfcTypeObject), to an occurrence (subtypes of IfcObject), or as a special case to a performance history.

The attribute ApplicableEntity may further refine the applicability to a single or multiple entity type(s).		X
6ApplicableEntityIfcIdentifier[0:1] The attribute optionally defines the data type of the applicable type or occurrence object, to which the assigned property set template can relate. If not present, no instruction is given to which type or occurrence object the property set template is applicable. The following conventions are used:
  • The IFC entity name of the applicable entity using the IFC naming convention, CamelCase with IFC prefix
  • It can be optionally followed by the predefined type after the separator "/" (forward slash), using upper case
  • If a performance history object of a particular distribution object is attributes by the property set template, then the entity name (and potentially amended by the predefined type) is expanded by adding '[PerformanceHistory]'
  • If one property set template is applicable to many type and/or occurrence objects, then those object names should be separate by comma "," forming a comma separated string.
EXAMPLE Refering to a boiler type as applicable entity would be expressed as 'IfcBoilerType', refering to a steam boiler type as applicable entity would be expressed as 'IfcBoilerType/STEAM', refering to a wall and wall standard case and a wall type would be expressed as 'IfcWall, IfcWallStandardCase, IfcWallType'. An applicable IfcPerformanceHistory assigned to an occurrence or type object would be indicated by IfcBoilerType[PerformanceHistory], or respectively IfcBoilerType/STEAM[PerformanceHistory].
X
7HasPropertyTemplatesIfcPropertyTemplateS[1:?] Set of IfcPropertyTemplate's that are defined within the scope of the IfcPropertySetTemplate.X
DefinesIfcRelDefinesByTemplate
@RelatingTemplate		S[0:?]Relation to the property sets, via the objectified relationship IfcRelDefinesByTemplate, that, if given, utilize the definition template. X
Formal Propositions
RuleDescription
ExistsNameThe Name attribute has to be provided. The attribute is used to specify the signifier of the property set template. The properties that are allowed to be attached to a particular property set template may be given within the property set definition part of the IFC specification.
UniquePropertyNamesEvery individual IfcPropertyTemplate within the property set template shall have a unique Name attribute value.
Inherited definitions from supertypes
Entity inheritance IfcPropertyTemplateDefinition IfcPropertyDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRoot
1GlobalIdIfcGloballyUniqueId[1:1] Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory[0:1] Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
X
3NameIfcLabel[0:1] Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText[0:1] Optional description, provided for exchanging informative comments.X
IfcPropertyDefinition
HasContextIfcRelDeclares
@RelatedDefinitions		S[0:1]X
HasAssociationsIfcRelAssociates
@RelatedObjects		S[0:?]Reference to the relationship IfcRelAssociates and thus to those externally defined concepts, like classifications, documents, or library information, which are associated to the property definition.X
IfcPropertyTemplateDefinition
IfcPropertySetTemplate
5TemplateTypeIfcPropertySetTemplateTypeEnum[0:1] Property set type defining whether the property set is applicable to a type (subtypes of IfcTypeObject), to an occurrence (subtypes of IfcObject), or as a special case to a performance history.

The attribute ApplicableEntity may further refine the applicability to a single or multiple entity type(s).		X
6ApplicableEntityIfcIdentifier[0:1] The attribute optionally defines the data type of the applicable type or occurrence object, to which the assigned property set template can relate. If not present, no instruction is given to which type or occurrence object the property set template is applicable. The following conventions are used:
  • The IFC entity name of the applicable entity using the IFC naming convention, CamelCase with IFC prefix
  • It can be optionally followed by the predefined type after the separator "/" (forward slash), using upper case
  • If a performance history object of a particular distribution object is attributes by the property set template, then the entity name (and potentially amended by the predefined type) is expanded by adding '[PerformanceHistory]'
  • If one property set template is applicable to many type and/or occurrence objects, then those object names should be separate by comma "," forming a comma separated string.
EXAMPLE Refering to a boiler type as applicable entity would be expressed as 'IfcBoilerType', refering to a steam boiler type as applicable entity would be expressed as 'IfcBoilerType/STEAM', refering to a wall and wall standard case and a wall type would be expressed as 'IfcWall, IfcWallStandardCase, IfcWallType'. An applicable IfcPerformanceHistory assigned to an occurrence or type object would be indicated by IfcBoilerType[PerformanceHistory], or respectively IfcBoilerType/STEAM[PerformanceHistory].
X
7HasPropertyTemplatesIfcPropertyTemplateS[1:?] Set of IfcPropertyTemplate's that are defined within the scope of the IfcPropertySetTemplate.X
DefinesIfcRelDefinesByTemplate
@RelatingTemplate		S[0:?]Relation to the property sets, via the objectified relationship IfcRelDefinesByTemplate, that, if given, utilize the definition template. X
Definitions applying to Common Use Definitions
Concept inheritance

#ConceptModel View
IfcRoot
Software IdentityCommon Use Definitions
Revision ControlCommon Use Definitions
Examples
Formal representations
XSD Specification
 <xs:element name="IfcPropertySetTemplate" type="ifc:IfcPropertySetTemplate" substitutionGroup="ifc:IfcPropertyTemplateDefinition" nillable="true"/>
 <xs:complexType name="IfcPropertySetTemplate">
  <xs:complexContent>
   <xs:extension base="ifc:IfcPropertyTemplateDefinition">
    <xs:sequence>
     <xs:element name="HasPropertyTemplates">
      <xs:complexType>
       <xs:sequence>
        <xs:element ref="ifc:IfcPropertyTemplate" maxOccurs="unbounded"/>
       </xs:sequence>
       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcPropertyTemplate"/>
       <xs:attribute ref="ifc:cType" fixed="set"/>
       <xs:attribute ref="ifc:arraySize" use="optional"/>
      </xs:complexType>
     </xs:element>
    </xs:sequence>
    <xs:attribute name="TemplateType" type="ifc:IfcPropertySetTemplateTypeEnum" use="optional"/>
    <xs:attribute name="ApplicableEntity" type="ifc:IfcIdentifier" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcPropertySetTemplate
 SUBTYPE OF (IfcPropertyTemplateDefinition);
  TemplateType : OPTIONAL IfcPropertySetTemplateTypeEnum;
  ApplicableEntity : OPTIONAL IfcIdentifier;
  HasPropertyTemplates : SET [1:?] OF IfcPropertyTemplate;
 INVERSE
  Defines : SET OF IfcRelDefinesByTemplate FOR RelatingTemplate;
 WHERE
  ExistsName : EXISTS(SELF\IfcRoot.Name);
  UniquePropertyNames : IfcUniquePropertyTemplateNames(HasPropertyTemplates);
END_ENTITY;
