Natural language names
 | Bezieht sich auf eine räumliche Struktur - Relation |
 | Rel Referenced In Spatial Structure |
| Bezieht sich auf eine räumliche Struktur - Relation |
| Rel Referenced In Spatial Structure |
| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcRelReferencedInSpatialStructure | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| RelatingStructure | X | X | MODIFIED | Type changed from IfcSpatialStructureElement to IfcSpatialElement. |
The objectified relationship, IfcRelReferencedInSpatialStructure is used to assign elements in addition to those levels of the project spatial structure, in which they are referenced, but not primarily contained.
NOTE The primary containment relationship between an element and the spatial structure is handled by IfcRelContainsInSpatialStructure.
Any element can be referenced to zero, one or several levels of the spatial structure. Whereas the IfcRelContainsInSpatialStructure relationship is required to be hierarchical (an element can only be contained in exactly one spatial structure element), the IfcRelReferencedInSpatialStructure is not restricted to be hierarchical.
EXAMPLE A wall might be normally contained within a storey, and since it does not span through several stories, it is not referenced in any additional storey. However a curtain wall might span through several stories, in this case it can be contained within the ground floor, but it would be referenced by all additional stories, it spans.
Predefined spatial structure elements to which elements can be assigned are
Elements can also be references in a spatial zone that is provided as IfcSpatialZone.

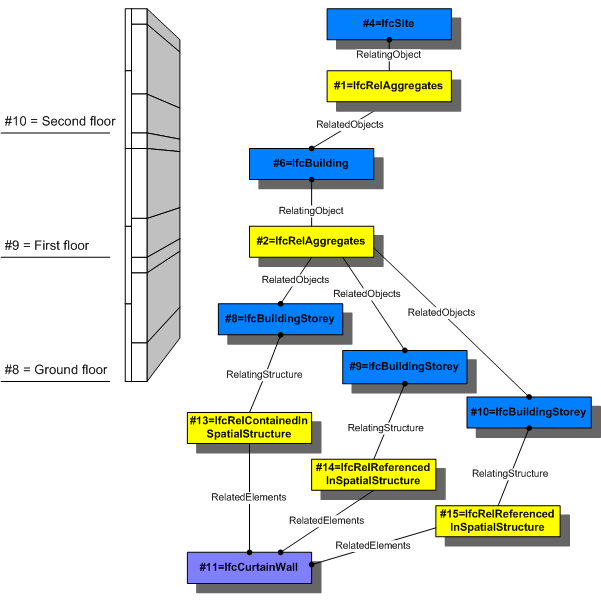

Figure 156 shows the use of IfcRelContainedInSpatialStructure and IfcRelReferencedInSpatialStructure to assign an IfcCurtainWall to two different levels within the spatial structure. It is primarily contained within the ground floor, and additionally referenced within the first and second floor.
 |
Figure 156 — Relationship for spatial structure referencing |
HISTORY New entity in IFC2x3.
| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| 5 | RelatedElements | IfcProduct | S[1:?] |
Set of products, which are referenced within this level of the spatial structure hierarchy.
NOTE Referenced elements are contained elsewhere within the spatial structure, they are referenced additionally by this spatial structure element, e.g., because they span several stories. | X |
| 6 | RelatingStructure | IfcSpatialElement | [1:1] | Spatial structure element, within which the element is referenced. Any element can be contained within zero, one or many elements of the project spatial and zoning structure. | X |
| Rule | Description |
|---|---|
| WR31 | The relationship object shall not be used to include other spatial structure elements into a spatial structure element. The hierarchy of the spatial structure is defined using IfcRelAggregates. |
| # | Attribute | Type | Cardinality | Description | C |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | [1:1] | Assignment of a globally unique identifier within the entire software world. | X |
| 2 | OwnerHistory | IfcOwnerHistory | [0:1] |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. | X |
| 3 | Name | IfcLabel | [0:1] | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | [0:1] | Optional description, provided for exchanging informative comments. | X |
| IfcRelationship | |||||
| IfcRelConnects | |||||
| IfcRelReferencedInSpatialStructure | |||||
| 5 | RelatedElements | IfcProduct | S[1:?] |
Set of products, which are referenced within this level of the spatial structure hierarchy.
NOTE Referenced elements are contained elsewhere within the spatial structure, they are referenced additionally by this spatial structure element, e.g., because they span several stories. | X |
| 6 | RelatingStructure | IfcSpatialElement | [1:1] | Spatial structure element, within which the element is referenced. Any element can be contained within zero, one or many elements of the project spatial and zoning structure. | X |
| # | Concept | Model View |
|---|---|---|
| IfcRoot | ||
| Software Identity | Common Use Definitions | |
| Revision Control | Common Use Definitions | |
<xs:element name="IfcRelReferencedInSpatialStructure" type="ifc:IfcRelReferencedInSpatialStructure" substitutionGroup="ifc:IfcRelConnects" nillable="true"/>
<xs:complexType name="IfcRelReferencedInSpatialStructure">
<xs:complexContent>
<xs:extension base="ifc:IfcRelConnects">
<xs:sequence>
<xs:element name="RelatedElements">
<xs:complexType>
<xs:sequence>
<xs:element ref="ifc:IfcProduct" maxOccurs="unbounded"/>
</xs:sequence>
<xs:attribute ref="ifc:itemType" fixed="ifc:IfcProduct"/>
<xs:attribute ref="ifc:cType" fixed="set"/>
<xs:attribute ref="ifc:arraySize" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element name="RelatingStructure" type="ifc:IfcSpatialElement" nillable="true"/>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcRelReferencedInSpatialStructure
SUBTYPE OF (IfcRelConnects);
RelatedElements : SET [1:?] OF IfcProduct;
RelatingStructure : IfcSpatialElement;
WHERE
WR31 : SIZEOF(QUERY(temp <* RelatedElements | 'IFCPRODUCTEXTENSION.IFCSPATIALSTRUCTUREELEMENT' IN TYPEOF(temp))) = 0;
END_ENTITY;
EXPRESS-G diagram
