IfcArbitraryClosedProfileDef

Natural language names
deBeliebiges geschlossenes Profil
enArbitrary Closed Profile Def
Semantic definitions at the entity
Entity definition

The closed profile IfcArbitraryClosedProfileDef defines an arbitrary two-dimensional profile for the use within the swept surface geometry, the swept area solid or a sectioned spine. It is given by an outer boundary from which the surface or solid can be constructed.

HISTORY  New entity in IFC1.5. Entity has been renamed from IfcArbitraryProfileDef in IFC2x.

Informal Propositions:

  1. The OuterCurve has to be a closed curve.
  2. The OuterCurve shall not intersect.

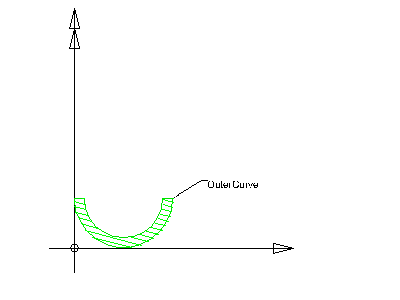

Figure 379 illustrates the arbitrary closed profile definition. The OuterCurve is defined in the underlying coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either:

or in case of sectioned spines the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions. The OuterCurve attribute defines a two dimensional closed bounded curve.

arbitrary profile without boundaries

Figure 379 — Arbitrary closed profile

Attribute definitions
#AttributeTypeCardinalityDescription C
3OuterCurveIfcCurve[1:1] Bounded curve, defining the outer boundaries of the arbitrary profile.X
Formal Propositions
RuleDescription
WR1The curve used for the outer curve definition shall have the dimensionality of 2.
WR2The outer curve shall not be of type IfcLine as IfcLine is not a closed curve.
WR3The outer curve shall not be of type IfcOffsetCurve2D as it should not be defined as an offset of another curve.
Inherited definitions from supertypes
Entity inheritance IfcArbitraryProfileDefWithVoids IfcProfileDef
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcProfileDef
1ProfileTypeIfcProfileTypeEnum[1:1] Defines the type of geometry into which this profile definition shall be resolved, either a curve or a surface area. In case of curve the profile should be referenced by a swept surface, in case of area the profile should be referenced by a swept area solid.X
2ProfileNameIfcLabel[0:1] Human-readable name of the profile, for example according to a standard profile table. As noted above, machine-readable standardized profile designations should be provided in IfcExternalReference.ItemReference. X
HasExternalReferenceIfcExternalReferenceRelationship
@RelatedResourceObjects
S[0:?]Reference to external information, e.g. library, classification, or document information, which is associated with the profile. X
HasPropertiesIfcProfileProperties
@ProfileDefinition
S[0:?]Additional properties of the profile, for example mechanical properties. X
IfcArbitraryClosedProfileDef
3OuterCurveIfcCurve[1:1] Bounded curve, defining the outer boundaries of the arbitrary profile.X
Definitions applying to Common Use Definitions

Concept inheritance

#ConceptModel View
IfcProfileDef
Property Sets for ObjectsCommon Use Definitions
Examples
Formal representations
XSD Specification
 <xs:element name="IfcArbitraryClosedProfileDef" type="ifc:IfcArbitraryClosedProfileDef" substitutionGroup="ifc:IfcProfileDef" nillable="true"/>
 <xs:complexType name="IfcArbitraryClosedProfileDef">
  <xs:complexContent>
   <xs:extension base="ifc:IfcProfileDef">
    <xs:sequence>
     <xs:element name="OuterCurve" type="ifc:IfcCurve" nillable="true"/>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcArbitraryClosedProfileDef
 SUPERTYPE OF(IfcArbitraryProfileDefWithVoids)
 SUBTYPE OF (IfcProfileDef);
  OuterCurve : IfcCurve;
 WHERE
  WR1 : OuterCurve.Dim = 2;
  WR2 : NOT('IFCGEOMETRYRESOURCE.IFCLINE' IN TYPEOF(OuterCurve));
  WR3 : NOT('IFCGEOMETRYRESOURCE.IFCOFFSETCURVE2D' IN TYPEOF(OuterCurve));
END_ENTITY;
