4.8.2.9.4 Body SweptSolid Geometry

The Body SweptSolid Geometry is the representation of the 3D shape of a product by swept solid models, only allowing for the basic extruded area solids and revolved area solids.

The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

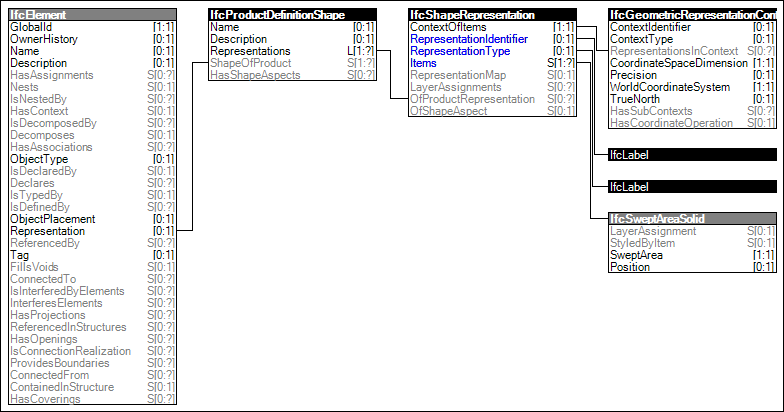

Figure 84 illustrates an instance diagram.

Body SweptSolid GeometryIfcElementIfcProductDefinitionShapeIfcShapeRepresentationIfcGeometricRepresentationContextIfcLabelIfcLabelIfcSweptAreaSolid

Figure 84 — Body SweptSolid Geometry

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="cb7c18fa-cf83-4db1-be1b-c013ba4ed672" name="Body SweptSolid Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
  <Rules>
    <AttributeRule AttributeName="Representation">
      <EntityRules>
        <EntityRule EntityName="IfcProductDefinitionShape">
          <AttributeRules>
            <AttributeRule AttributeName="Representations">
              <EntityRules>
                <EntityRule EntityName="IfcShapeRepresentation">
                  <AttributeRules>
                    <AttributeRule AttributeName="ContextOfItems">
                      <EntityRules>
                        <EntityRule EntityName="IfcGeometricRepresentationContext" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Type" AttributeName="RepresentationType">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Geometry" AttributeName="Items">
                      <EntityRules>
                        <EntityRule EntityName="IfcSweptAreaSolid" />
                      </EntityRules>
                    </AttributeRule>
                  </AttributeRules>
                </EntityRule>
              </EntityRules>
            </AttributeRule>
            <AttributeRule AttributeName="Name" />
            <AttributeRule AttributeName="Description" />
          </AttributeRules>
        </EntityRule>
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>

Examples:
