IfcBSplineCurve

Semantic definitions at the entity

Entity definition

The IfcBSplineCurve is a spline curve parameterized by spline functions.

Figure 364 illustrates a B-spline curve.

NOTE Figure quoted from ISO 10303-42.

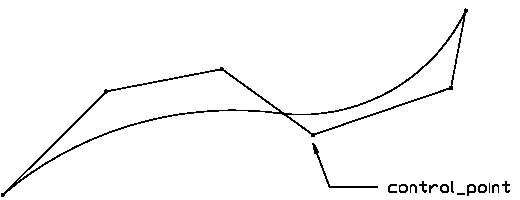

Figure 364 — B-spline curve

NOTE Definition according to ISO/CD 10303-42:1992
A B-spline curve is a piecewise parametric polynomial or rational curve described in terms of control points and basis functions. The B-spline curve has been selected as the most stable format to represent all types of polynomial or rational parametric curves. With appropriate attribute values it is capable of representing single span or spline curves of explicit polynomial, rational, Bezier or B-spline type.

Interpretation of the data is as follows:

All weights shall be positive and the curve is given by

k+1 = number of control points

P_i = control points

w_i = weights

d = degree

The knot array is an array of (k+d+2) real numbers [u_-d ... u_k+1], such that for all indices j in [-d,k], u_j <= u_j+1. This array is obtained from the knot data list by repeating each multiple knot according to the multiplicity. N ^d_i, the ith normalized B-spline basis function of degree d, is defined on the subset [u_i-d, ... , u_i+1] of this array.

Let L denote the number of distinct values among the d+k+2 knots in the knot array; L will be referred to as the 'upper index on knots'. Let m_j denote the multiplicity (number of repetitions) of the jth distinct knot. Then

All knot multiplicities except the first and the last shall be in the range 1 ... degree; the first and last may have a maximum value of degree + 1. In evaluating the basis functions, a knot u of e.g. multiplicity 3 is interpreted as a string u, u, u, in the knot array. The B-spline curve has 3 special subtypes (Note: only 1, Bezier curve, included in this IFC release) where the knots and knot multiplicities are derived to provide simple default capabilities.

Logical flag is provided to indicate whether the curve self intersects or not.

NOTE Entity adapted from b_spline_curve defined in ISO10303-42.

HISTORY New entity in IFC2x2.

Attribute definitions

#	Attribute	Type	Cardinality	Description	G
1	Degree	IfcInteger		The algebraic degree of the basis functions.	X
2	ControlPointsList	IfcCartesianPoint	L[2:?]	The list of control points for the curve.	X
3	CurveForm	IfcBSplineCurveForm		Used to identify particular types of curve; it is for information only.	X
4	ClosedCurve	IfcLogical		Indication of whether the curve is closed; it is for information only.	X
5	SelfIntersect	IfcLogical		Indication whether the curve self-intersects or not; it is for information only.	X
	UpperIndexOnControlPoints :=(SIZEOF(ControlPointsList) - 1)	IfcInteger		The upper index on the array of control points; the lower index is 0. This value is derived from the control points list.	X
	ControlPoints :=IfcListToArray(ControlPointsList,0,UpperIndexOnControlPoints)	IfcCartesianPoint	A[0:UpperIndexOnControlPoints]	The array of control points used to define the geometry of the curve. This is derived from the list of control points.	X

Formal Propositions

Rule	Description
SameDim	All control points shall have the same dimensionality.

Inherited definitions from supertypes

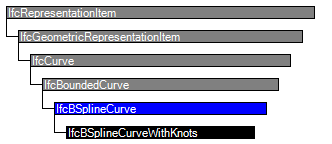

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	G
IfcRepresentationItem
	LayerAssignment	IfcPresentationLayerAssignment @AssignedItems	S[0:1]	Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. IFC2x3 CHANGE The inverse attribute LayerAssignments has been added. IFC4 CHANGE The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.	X
	StyledByItem	IfcStyledItem @Item	S[0:1]	Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. IFC2x3 CHANGE The inverse attribute StyledByItem has been added.	X
IfcGeometricRepresentationItem
IfcCurve
	Dim :=IfcCurveDim(SELF)	IfcDimensionCount		The space dimensionality of this abstract class, defined differently for all subtypes, i.e. for IfcLine, IfcConic and IfcBoundedCurve.	X
IfcBoundedCurve
IfcBSplineCurve
1	Degree	IfcInteger		The algebraic degree of the basis functions.	X
2	ControlPointsList	IfcCartesianPoint	L[2:?]	The list of control points for the curve.	X
3	CurveForm	IfcBSplineCurveForm		Used to identify particular types of curve; it is for information only.	X
4	ClosedCurve	IfcLogical		Indication of whether the curve is closed; it is for information only.	X
5	SelfIntersect	IfcLogical		Indication whether the curve self-intersects or not; it is for information only.	X
	UpperIndexOnControlPoints :=(SIZEOF(ControlPointsList) - 1)	IfcInteger		The upper index on the array of control points; the lower index is 0. This value is derived from the control points list.	X
	ControlPoints :=IfcListToArray(ControlPointsList,0,UpperIndexOnControlPoints)	IfcCartesianPoint	A[0:UpperIndexOnControlPoints]	The array of control points used to define the geometry of the curve. This is derived from the list of control points.	X

Formal representations

XML Specification

 <xs:element name="IfcBSplineCurve" type="ifc:IfcBSplineCurve" abstract="true" substitutionGroup="ifc:IfcBoundedCurve" nillable="true"/>

 <xs:complexType name="IfcBSplineCurve" abstract="true">

  <xs:complexContent>

   <xs:extension base="ifc:IfcBoundedCurve">

    <xs:sequence>

     <xs:element name="ControlPointsList">

      <xs:complexType>

       <xs:sequence>

        <xs:element ref="ifc:IfcCartesianPoint" minOccurs="2" maxOccurs="unbounded"/>

       </xs:sequence>

       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcCartesianPoint"/>

       <xs:attribute ref="ifc:cType" fixed="list"/>

       <xs:attribute ref="ifc:arraySize" use="optional"/>

      </xs:complexType>

     </xs:element>

    </xs:sequence>

    <xs:attribute name="Degree" type="ifc:IfcInteger" use="optional"/>

    <xs:attribute name="CurveForm" type="ifc:IfcBSplineCurveForm" use="optional"/>

    <xs:attribute name="ClosedCurve" type="ifc:IfcLogical" use="optional"/>

    <xs:attribute name="SelfIntersect" type="ifc:IfcLogical" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcBSplineCurve

 ABSTRACT SUPERTYPE OF(IfcBSplineCurveWithKnots)

 SUBTYPE OF (IfcBoundedCurve);

  Degree : IfcInteger;

  ControlPointsList : LIST [2:?] OF IfcCartesianPoint;

  CurveForm : IfcBSplineCurveForm;

  ClosedCurve : IfcLogical;

  SelfIntersect : IfcLogical;

 DERIVE

  UpperIndexOnControlPoints : IfcInteger := (SIZEOF(ControlPointsList) - 1);

  ControlPoints : ARRAY [0:UpperIndexOnControlPoints] OF IfcCartesianPoint := IfcListToArray(ControlPointsList,0,UpperIndexOnControlPoints);

 WHERE

  SameDim : SIZEOF(QUERY(Temp <* ControlPointsList |

  Temp.Dim <> ControlPointsList[1].Dim))

= 0;
END_ENTITY;

 EXPRESS-G diagram

	B茅zier-Spline-Kurve
	BSpline Curve
	Courbe Bspline

k+1	= number of control points
P_i	= control points
w_i	= weights
d	= degree
