IfcDoor

Semantic definitions at the entity

Entity definition

The door is a building element that is predominately used to provide controlled access for people and goods. It includes constructions with hinged, pivoted, sliding, and additionally revolving and folding operations. A door consists of a lining and one or several panels.

NOTE Definition according to ISO 6707-1: construction for closing an opening, intended primarily for access with hinged, pivoted or sliding operation.

The IfcDoor defines a particular occurrence of a door inserted in the spatial context of a project. A door can:

be inserted as a filler in an opening using the IfcRelFillsElement relationship, then the IfcDoor has an inverse attribute FillsVoids provided;
NOTE View definitions or implementer agreements may restrict the relationship to only include one door into one opening
be part of an element assembly, in general an IfcCurtainWall, using the IfcRelAggregates relationship, then the IfcDoor has an inverse attribute Decomposes is provided;
be a "free standing" door, then the IfcDoor has no inverse attributes FillsVoids or Decomposes provided.

This specification provides two entities for door occurrences:

IfcDoorStandardCase used for all occurrences of doors, that have a 'Profile' shape representation defined to which a set of shape parameters for lining and framing properties apply. Additionally it requires the provision of an IfcDoorType that references one IfcDoorLiningProperties and on to many IfcDoorPanelProperties;
NOTE see IfcDoorStandardCase for all specific constraints imposed by this subtype.
IfcDoor used for all other occurrences of doors, particularly for doors having only 'Brep', or 'SurfaceModel' geometry without applying shape parameters.

The actual parameters of the door and/or its shape are defined by the IfcDoor as the occurrence definition (or project instance), or by the IfcDoorType as the specific definition (or project type). The following parameters are given:

at the IfcDoor or IfcDoorStandardCase for occurrence specific parameters. The IfcDoor specifies:
- the door width and height
- the door opening direction (by the y-axis of the ObjectPlacement)
at the IfcDoorType, to which the IfcDoor is related by the inverse relationship IsTypedBy pointing to IfcRelDefinesByType, for type parameters common to all occurrences of the same type.
- the operation type (single swing, double swing, revolving, etc.)
- the door hinge side (by using two different styles for right and left opening doors)
- the construction material type
- the particular attributes for the lining by the IfcDoorLiningProperties
- the particular attributes for the panels by the IfcDoorPanelProperties

HISTORY New entity in IFC1.0.

IFC4 CHANGE The attributes PredefinedType and OperationType are added, the applicable type object has been changed to IfcDoorType.

The geometric representation of IfcDoor is given by the IfcProductDefinitionShape, allowing multiple geometric representations. The IfcDoor may get its parameter and shape from the IfcDoorType. If an IfcRepresentationMap (a block definition) is defined for the IfcDoorType, then the IfcDoor inserts it through the IfcMappedItem.

The geometric representation of IfcDoor is defined using the following (potentially multiple) IfcShapeRepresentation's for its IfcProductDefinitionShape:

Profile: A 'Curve3D' consisting of a single losed curve defining the outer boundary of the door (lining). The door parametric representation uses this profile in order to apply the door lining and panel parameter. If not provided, the profile of the IfcOpeningElement is taken.
FootPrint: A 'GeometricCurveSet', or 'Annotation2D' representation defining the 2D shape of the door
Body: A 'SweptSolid', 'SurfaceModel', or 'Brep' representation defining the 3D shape of the door.

In addition the parametric representation of a (limited) door shape is available by applying the parameters from IfcDoorType referencing IfcDoorLiningProperties and IfcDoorPanelProperties. The purpose of the parameter is described at those entities and below (door opening operation by door type).

The overall size of the IfcDoor to be used to apply the lining or panel parameter provided by the IfcDoorType is determined by the IfcShapeRepresentation with the RepresentationIdentifier = 'Profile'.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
9	OverallHeight	IfcPositiveLengthMeasure	[0:1]	Overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the ~~body of the~~ door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight shall still be given as the door opening height, and not as the total height of the door lining.	X
10	OverallWidth	IfcPositiveLengthMeasure	[0:1]	Overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the ~~body of the~~ door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth shall still be given as the door opening width, and not as the total width of the door lining.	X
11	PredefinedType	IfcDoorTypeEnum	[0:1]	Predefined generic type for a door that is specified in an enumeration. There may be a property set given specificly for the predefined types. NOTE The PredefinedType shall only be used, if no IfcDoorType is assigned, providing its own IfcDoorType.PredefinedType.	X
12	OperationType	IfcDoorTypeOperationEnum	[0:1]	Type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations. NOTE The OperationType shall only be used, if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType.	X
13	UserDefinedOperationType	IfcLabel	[0:1]	Designator for the user defined operation type, shall only be provided, if the value of OperationType is set to USERDEFINED.	X

Formal Propositions

Rule	Description
CorrectStyleAssigned	Either there is no door type object associated, i.e. the IsTypedBy inverse relationship is not provided, or the associated type object has to be of type IfcDoorType. NOTEnbsp; The deprecated type IfcDoorStyle is still included for backward compatibility reasons.

Inherited definitions from supertypes

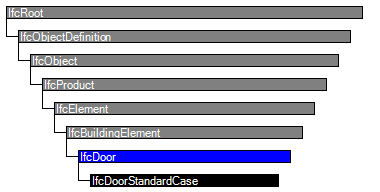

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcObjectDefinition
	HasAssignments	IfcRelAssigns @RelatedObjects	S[0:?]	Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.	X
	Nests	IfcRelNests @RelatedObjects	S[0:1]	References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).	X
	IsNestedBy	IfcRelNests @RelatingObject	S[0:?]	References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).	X
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]	References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.	X
	IsDecomposedBy	IfcRelAggregates @RelatingObject	S[0:?]	References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).	X
	Decomposes	IfcRelAggregates @RelatedObjects	S[0:1]	References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).	X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.	X
IfcObject
5	ObjectType	IfcLabel	[0:1]	The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.	X
	IsDeclaredBy	IfcRelDefinesByObject @RelatedObjects	S[0:1]	Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	Declares	IfcRelDefinesByObject @RelatingObject	S[0:?]	Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.	X
	IsTypedBy	IfcRelDefinesByType @RelatedObjects	S[0:1]	Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.	X
	IsDefinedBy	IfcRelDefinesByProperties @RelatedObjects	S[0:?]	Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.	X
IfcProduct
6	ObjectPlacement	IfcObjectPlacement	[0:1]	Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.	X
7	Representation	IfcProductRepresentation	[0:1]	Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.	X
	ReferencedBy	IfcRelAssignsToProduct @RelatingProduct	S[0:?]	Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.	X
IfcElement
8	Tag	IfcIdentifier	[0:1]	The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.	X
	FillsVoids	IfcRelFillsElement @RelatedBuildingElement	S[0:1]	Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element.	X
	ConnectedTo	IfcRelConnectsElements @RelatingElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to.	X
	IsInterferedByElements	IfcRelInterferesElements @RelatedElement	S[0:?]	Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements.	X
	InterferesElements	IfcRelInterferesElements @RelatingElement	S[0:?]	Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements. NOTE There is no indication of precedence between IsInterferedByElements and InterferesElements.	X
	HasProjections	IfcRelProjectsElement @RelatingElement	S[0:?]	Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.	X
	ReferencedInStructures	IfcRelReferencedInSpatialStructure @RelatedElements	S[0:?]	Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements.	X
	HasOpenings	IfcRelVoidsElement @RelatingBuildingElement	S[0:?]	Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated.	X
	IsConnectionRealization	IfcRelConnectsWithRealizingElements @RealizingElements	S[0:?]	Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship.	X
	ProvidesBoundaries	IfcRelSpaceBoundary @RelatedBuildingElement	S[0:?]	Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces.	X
	ConnectedFrom	IfcRelConnectsElements @RelatedElement	S[0:?]	Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element.	X
	ContainedInStructure	IfcRelContainedInSpatialStructure @RelatedElements	S[0:1]	Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure.	X
	HasCoverings	IfcRelCoversBldgElements @RelatingBuildingElement	S[0:?]	Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.	X
IfcBuildingElement
IfcDoor
9	OverallHeight	IfcPositiveLengthMeasure	[0:1]	Overall measure of the height, it reflects the Z Dimension of a bounding box, enclosing the ~~body of the~~ door opening. If omitted, the OverallHeight should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be taller then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallHeight shall still be given as the door opening height, and not as the total height of the door lining.	X
10	OverallWidth	IfcPositiveLengthMeasure	[0:1]	Overall measure of the width, it reflects the X Dimension of a bounding box, enclosing the ~~body of the~~ door opening. If omitted, the OverallWidth should be taken from the geometric representation of the IfcOpening in which the door is inserted. NOTE The body of the door might be wider then the door opening (e.g. in cases where the door lining includes a casing). In these cases the OverallWidth shall still be given as the door opening width, and not as the total width of the door lining.	X
11	PredefinedType	IfcDoorTypeEnum	[0:1]	Predefined generic type for a door that is specified in an enumeration. There may be a property set given specificly for the predefined types. NOTE The PredefinedType shall only be used, if no IfcDoorType is assigned, providing its own IfcDoorType.PredefinedType.	X
12	OperationType	IfcDoorTypeOperationEnum	[0:1]	Type defining the general layout and operation of the door type in terms of the partitioning of panels and panel operations. NOTE The OperationType shall only be used, if no type object IfcDoorType is assigned, providing its own IfcDoorType.OperationType.	X
13	UserDefinedOperationType	IfcLabel	[0:1]	Designator for the user defined operation type, shall only be provided, if the value of OperationType is set to USERDEFINED.	X

Definitions applying to Common Use Definitions

Instance diagram

Concept usage

Door Attributes

The Door Attributes concept applies to this entity.

The opening direction is determined by the local placement of IfcDoor and the OperationType of the IfcDoorType as shown in Figure 209.

NOTE There are different definitions in various countries on what a left opening or left hung or left swing door is (same for right). Therefore the IFC definition may derivate from the local standard and need to be mapped appropriately.

Opening directions	Definitions	Reference to other standards
	The door panel (for swinging doors) opens always into the direction of the positive Y axis of the local placement. The determination of whether the door opens to the left or to the right is done at the level of the IfcDoorType. Here it is a left side opening door given by IfcDoorType.OperationType = SingleSwingLeft	refered to as LEFT HAND (LH) in US * refered to as DIN-R (right hung) in Germany
	If the door should open to the other side, then the local placement has to be changed. It is still a left side opening door, given by IfcDoorType.OperationType = SingleSwingLeft	refered to as RIGHT HAND REVERSE (RHR) in US * refered to as DIN-R (right hung) in Germany
	If the door panel (for swinging doors) opens to the right, a separate door style needs to be used (here IfcDoorTypee.OperationType = SingleSwingRight) and it always opens into the direction of the positive Y axis of the local placement.	refered to as RIGHT HAND (RH) in US * refered to as DIN-L (left hung) in Germany
	If the door panel (for swinging doors) opens to the right, and into the opposite directions, the local placement of the door need to change. The door style is given by IfcDoorType.OperationType = SingleSwingRight.	refered to as LEFT HAND REVERSE (LHR) in US * refered to as DIN-L (left hung) in Germany
* it assumes that the 'inside/private/primary' space is above (top in the pictures) and the 'outside/public/secondary' space is below (bottom in the pictures).

Figure 209 — Door swing

NOTE The OverallWidth and OverallHeight parameters are for informational purpose only.

Object Typing

The Object Typing concept applies to this entity as shown in Table 119.

Type	Description
IfcDoorType
IfcDoorStyle	NOTE This type is deprecated

Table 119 — IfcDoor Object Typing

Property Sets for Objects

The Property Sets for Objects concept applies to this entity as shown in Table 120.

PredefinedType

Name

Properties

Pset_DoorCommon

Single Value

Name	Value
Reference	IfcIdentifier
FireRating	IfcLabel
AcousticRating	IfcLabel
SecurityRating	IfcLabel
DurabilityRating	IfcLabel
HygrothermalRating	IfcLabel
IsExternal	IfcBoolean
Infiltration	IfcVolumetricFlowRateMeasure
ThermalTransmittance	IfcThermalTransmittanceMeasure
GlazingAreaFraction	IfcPositiveRatioMeasure
HandicapAccessible	IfcBoolean
FireExit	IfcBoolean
HasDrive	IfcBoolean
SelfClosing	IfcBoolean
SmokeStop	IfcBoolean
WaterTightnessRating	IfcLabel
MechanicalLoadRating	IfcLabel
WindLoadRating	IfcLabel

Enumerated Value

Name	Value	Value
Status	IfcLabel	IfcLabel

Pset_DoorWindowGlazingType

Single Value

Name	Value
GlassLayers	IfcCountMeasure
GlassThickness1	IfcPositiveLengthMeasure
GlassThickness2	IfcPositiveLengthMeasure
GlassThickness3	IfcPositiveLengthMeasure
FillGas	IfcLabel
GlassColor	IfcLabel
IsTempered	IfcBoolean
IsLaminated	IfcBoolean
IsCoated	IfcBoolean
IsWired	IfcBoolean
VisibleLightReflectance	IfcNormalisedRatioMeasure
VisibleLightTransmittance	IfcNormalisedRatioMeasure
SolarAbsorption	IfcNormalisedRatioMeasure
SolarReflectance	IfcNormalisedRatioMeasure
SolarTransmittance	IfcNormalisedRatioMeasure
SolarHeatGainTransmittance	IfcNormalisedRatioMeasure
ShadingCoefficient	IfcNormalisedRatioMeasure
ThermalTransmittanceSummer	IfcThermalTransmittanceMeasure
ThermalTransmittanceWinter	IfcThermalTransmittanceMeasure

Pset_EnvironmentalImpactIndicators

Single Value

Name	Value
Reference	IfcIdentifier
FunctionalUnitReference	IfcLabel
Unit	IfcText
ExpectedServiceLife	IfcTimeMeasure
TotalPrimaryEnergyConsumptionPerUnit	IfcEnergyMeasure
WaterConsumptionPerUnit	IfcVolumeMeasure
HazardousWastePerUnit	IfcMassMeasure
NonHazardousWastePerUnit	IfcMassMeasure
ClimateChangePerUnit	IfcMassMeasure
AtmosphericAcidificationPerUnit	IfcMassMeasure
RenewableEnergyConsumptionPerUnit	IfcEnergyMeasure
NonRenewableEnergyConsumptionPerUnit	IfcEnergyMeasure
ResourceDepletionPerUnit	IfcMassMeasure
InertWastePerUnit	IfcMassMeasure
RadioactiveWastePerUnit	IfcMassMeasure
StratosphericOzoneLayerDestructionPerUnit	IfcMassMeasure
PhotochemicalOzoneFormationPerUnit	IfcMassMeasure
EutrophicationPerUnit	IfcMassMeasure

Enumerated Value

Name	Value	Value
LifeCyclePhase	IfcLabel	IfcLabel

Pset_EnvironmentalImpactValues

Single Value

Name	Value
TotalPrimaryEnergyConsumption	IfcEnergyMeasure
WaterConsumption	IfcVolumeMeasure
HazardousWaste	IfcMassMeasure
NonHazardousWaste	IfcMassMeasure
ClimateChange	IfcMassMeasure
AtmosphericAcidification	IfcMassMeasure
RenewableEnergyConsumption	IfcEnergyMeasure
NonRenewableEnergyConsumption	IfcEnergyMeasure
ResourceDepletion	IfcMassMeasure
InertWaste	IfcMassMeasure
RadioactiveWaste	IfcMassMeasure
StratosphericOzoneLayerDestruction	IfcMassMeasure
PhotochemicalOzoneFormation	IfcMassMeasure
Eutrophication	IfcMassMeasure
LeadInTime	IfcDuration
Duration	IfcDuration
LeadOutTime

Pset_Condition

Single Value

Name	Value
AssessmentDate	IfcDate
AssessmentCondition	IfcLabel
AssessmentDescription	IfcText

Pset_ManufacturerOccurrence

Single Value

Name	Value
AcquisitionDate	IfcDate
BarCode	IfcIdentifier
SerialNumber	IfcIdentifier
BatchReference	IfcIdentifier

Enumerated Value

Name	Value	Value
AssemblyPlace	IfcLabel	IfcLabel

Pset_ManufacturerTypeInformation

Single Value

Name	Value
GlobalTradeItemNumber	IfcIdentifier
ArticleNumber	IfcIdentifier
ModelReference	IfcLabel
ModelLabel	IfcLabel
Manufacturer	IfcLabel
ProductionYear	IfcLabel

Enumerated Value

Name	Value	Value
AssemblyPlace	IfcLabel	IfcLabel

Pset_ServiceLife

Single Value

Name	Value
MeanTimeBetweenFailure	IfcDuration

Bounded Value

Name	Value	Value
ServiceLifeDuration	IfcDuration	IfcDuration

Pset_Warranty

Single Value

Name	Value
WarrantyIdentifier	IfcIdentifier
WarrantyStartDate	IfcDate
WarrantyEndDate	IfcDate
IsExtendedWarranty	IfcBoolean
WarrantyPeriod	IfcTimeMeasure
WarrantyContent	IfcText
Exclusions	IfcText

Table 120 — IfcDoor Property Sets for Objects

Quantity Sets

The Quantity Sets concept applies to this entity as shown in Table 121.

Name
Qto_DoorBaseQuantities

Table 121 — IfcDoor Quantity Sets

Material Constituents

The Material Constituents concept applies to this entity as shown in Table 122.

Name	Description
Lining	Indicates that the material constituent applies to the door lining.
Framing	Indicates that the material constituent applies to the door panel(s); if not provided, the 'Lining' material information applies to panel(s) as well.
Glazing	Indicates that the material constituent applies to the glazing part.

Table 122 — IfcDoor Material Constituents

The material of the IfcDoor is defined by the IfcMaterialConstituentSet or as fall back by IfcMaterial and attached by the IfcRelAssociatesMaterial relationship.

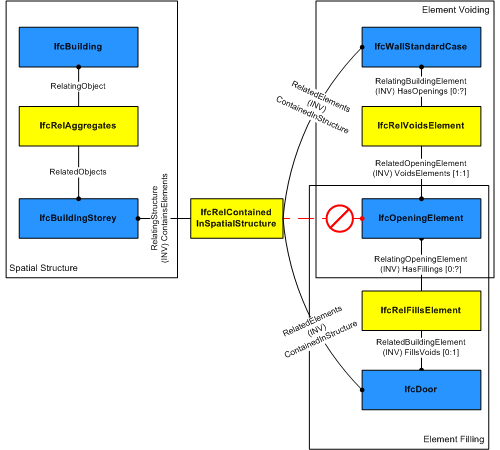

Spatial Containment

The Spatial Containment concept applies to this entity as shown in Table 123.

Structure	Description
IfcBuildingStorey	Default spatial container
IfcBuilding	Spatial container for the element if it cannot be assigned to a building storey
IfcSite	Spatial container for the element in case that it is placed on site (outside of building)
IfcSpace	In particular use cases, a door maybe assigned directly to space

Table 123 — IfcDoor Spatial Containment

The IfcDoor, as any subtype of IfcBuildingElement, may participate alternatively in one of the two different containment relationships:

the Spatial Containment (defined here), or
the Element Composition.

The IfcDoor may also be connected to the IfcOpeningElement in which it is placed as a filler. In this case, the spatial containment relationship shall be provided, see Figure 210.

	NOTE The containment shall be defined independently of the filling relationship, that is, even if the IfcDoor is a filling of an opening established by IfcRelFillsElement, it is also contained in the spatial structure by IfcRelContainedInSpatialStructure.
Figure 210 — Door spatial containment

Product Local Placement

The Product Local Placement concept applies to this entity as shown in Table 124.

Type	Relative	Description
IfcLocalPlacement	IfcLocalPlacement	Relative placement according to position and rotation relative to container.
IfcLocalPlacement		Absolute placement according to position and rotation of world coordinate system.
IfcGridPlacement		Placement according to grid intersection.

Table 124 — IfcDoor Product Local Placement

The following restriction is imposed:

The PlacementRelTo relationship of IfcLocalPlacement shall point to the local placement of the same element (if given), in which the IfcDoor is used as a filling (normally an IfcOpeningElement), as provided by the IfcRelFillsElement relationship;
If the IfcDoor is part of an assembly, e.g. an IfcCurtainWall, then the PlacementRelTo relationship of IfcLocalPlacement shall point (if given) to the local placement of that assembly;
If the IfcDoor is not inserted into an IfcOpeningElement, then the PlacementRelTo relationship of IfcLocalPlacement shall point (if given) to the local placement of the same IfcSpatialStructureElement that is used in the ContainedInStructure inverse attribute or to a referenced spatial structure element at a higher level.

NOTE The product placement is used to determine the opening direction of the door.

Profile 3D Geometry

The Profile 3D Geometry concept applies to this entity.

The door profile is represented by a three-dimensional closed curve within a particular shape representation. The profile is used to apply the parameter of the parametric door representation. Only a single closed curve shall be contained in the set of IfcShapeRepresentation.Items.

A 'Profile' representation has to be provided if a parametric representation is applied to the door.

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions
IfcObject
	Object Occurrence Predefined Type	Common Use Definitions
IfcElement
	Box Geometry	Common Use Definitions
	FootPrint Geometry	Common Use Definitions
	Body SurfaceOrSolidModel Geometry	Common Use Definitions
	Body SurfaceModel Geometry	Common Use Definitions
	Body Tessellation Geometry	Common Use Definitions
	Body Brep Geometry	Common Use Definitions
	Body AdvancedBrep Geometry	Common Use Definitions
	Body CSG Geometry	Common Use Definitions
	Mapped Geometry	Common Use Definitions
	Mesh Geometry	Common Use Definitions
IfcBuildingElement
	Product Assignment	Common Use Definitions
	Surface 3D Geometry	Common Use Definitions
IfcDoor
	Door Attributes	Common Use Definitions
	Object Typing	Common Use Definitions
	Property Sets for Objects	Common Use Definitions
	Quantity Sets	Common Use Definitions
	Material Constituents	Common Use Definitions
	Spatial Containment	Common Use Definitions
	Product Local Placement	Common Use Definitions
	Profile 3D Geometry	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcDoor" type="ifc:IfcDoor" substitutionGroup="ifc:IfcBuildingElement" nillable="true"/>

 <xs:complexType name="IfcDoor">

  <xs:complexContent>

   <xs:extension base="ifc:IfcBuildingElement">

    <xs:attribute name="OverallHeight" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

    <xs:attribute name="OverallWidth" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

    <xs:attribute name="PredefinedType" type="ifc:IfcDoorTypeEnum" use="optional"/>

    <xs:attribute name="OperationType" type="ifc:IfcDoorTypeOperationEnum" use="optional"/>

    <xs:attribute name="UserDefinedOperationType" type="ifc:IfcLabel" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcDoor

 SUPERTYPE OF(IfcDoorStandardCase)

 SUBTYPE OF (IfcBuildingElement);

  OverallHeight : OPTIONAL IfcPositiveLengthMeasure;

  OverallWidth : OPTIONAL IfcPositiveLengthMeasure;

  PredefinedType : OPTIONAL IfcDoorTypeEnum;

  OperationType : OPTIONAL IfcDoorTypeOperationEnum;

  UserDefinedOperationType : OPTIONAL IfcLabel;

 WHERE

  CorrectStyleAssigned : (SIZEOF(IsTypedBy) = 0)
OR ('IFCSHAREDBLDGELEMENTS.IFCDOORTYPE' IN TYPEOF(SELF\IfcObject.IsTypedBy[1].RelatingType));
END_ENTITY;

 EXPRESS-G diagram

Link to this page

Item	Change	Description
IFC2x3 to IFC4
IfcDoor
OwnerHistory	MODIFIED	Instantiation changed to OPTIONAL.
PredefinedType	ADDED
OperationType	ADDED
UserDefinedOperationType	ADDED

	Tür
	Door
	Porte
