IfcStair

Natural language names
Treppe
Stair
Escalier
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcStair
      OwnerHistoryMODIFIEDInstantiation changed to OPTIONAL.
      PredefinedTypeXMODIFIEDName changed from ShapeType to PredefinedType.
Instantiation changed to OPTIONAL.
Semantic definitions at the entity
Entity definition

A stair is a vertical passageway allowing occupants to walk (step) from one floor level to another floor level at a different elevation. It may include a landing as an intermediate floor slab.

NOTE  Definition according to ISO 6707-1: Construction comprising a succession of horizontal stages (steps or landings) that make it possible to pass on foot to other levels.

The IfcStair shall either be represented:

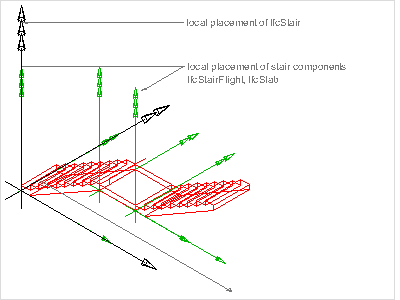

NOTE  In case of an IfcStair being the aggregate of all parts of the stair the aggregation is handled by the IfcRelAggregates relationship, relating an IfcStair with the related IfcStairFlight and landings, IfcSlab with PredefinedType=LANDING. IfcRailing's belonging to the stair may also be included into the aggregation.
NOTE  Model View Definitions and implementer agreements may restrict the IfcStair being an assembly to not have an independent shape representation, but to always require that the decomposed parts have a shape representation. In this case, at least the 'Body' geometric representations shall not be provided directly at IfcStair if it is an assembly. The 'Body' geometric representation of the IfcStair is then the sum of the 'Body' shape representation of the parts within the decomposition structure.
HISTORY  New entity in IFC2.0.
IFC4 CHANGE Attribute ShapeType renamed to PredefinedType.
Attribute definitions
#AttributeTypeCardinalityDescription G
9PredefinedTypeIfcStairTypeEnum? Predefined generic type for a stair that is specified in an enumeration. There may be a property set given specifically for the predefined types.
NOTE  The PredefinedType shall only be used, if no IfcStairType is assigned, providing its own IfcStairType.PredefinedType.
IFC4 CHANGE The attribute has been renamed from ShapeType and changed to be OPTIONAL with upward compatibility for file based exchange.
X
Formal Propositions
RuleDescription
CorrectPredefinedTypeEither the PredefinedType attribute is unset (e.g. because an IfcStairType is associated), or the inherited attribute ObjectType shall be provided, if the PredefinedType is set to USERDEFINED.
CorrectTypeAssignedEither there is no stair type object associated, i.e. the IsTypedBy inverse relationship is not provided, or the associated type object has to be of type IfcStairType.
Inherited definitions from supertypes

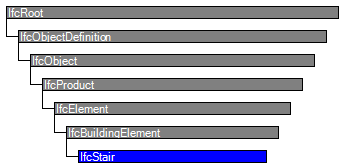

Entity inheritance IfcBuildingElement IfcElement IfcProduct IfcObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRoot
1GlobalIdIfcGloballyUniqueId Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory? Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
IFC4 CHANGE  The attribute has been changed to be OPTIONAL.
X
3NameIfcLabel? Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText? Optional description, provided for exchanging informative comments.X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects
S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.X
NestsIfcRelNests
@RelatedObjects
S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.
X
IsNestedByIfcRelNests
@RelatingObject
S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.
X
HasContextIfcRelDeclares
@RelatedDefinitions
S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE  The inverse attribute datatype has been added.
X
IsDecomposedByIfcRelAggregates
@RelatingObject
S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
DecomposesIfcRelAggregates
@RelatedObjects
S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
HasAssociationsIfcRelAssociates
@RelatedObjects
S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.X
IfcObject
5ObjectTypeIfcLabel? The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute PredefinedType is set to USERDEFINED.
X
IsDeclaredByIfcRelDefinesByObject
@RelatedObjects
S[0:1]Link to the relationship object pointing to the declaring object that provides the object definitions for this object occurrence. The declaring object has to be part of an object type decomposition. The associated IfcObject, or its subtypes, contains the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
DeclaresIfcRelDefinesByObject
@RelatingObject
S[0:?]Link to the relationship object pointing to the reflected object(s) that receives the object definitions. The reflected object has to be part of an object occurrence decomposition. The associated IfcObject, or its subtypes, provides the specific information (as part of a type, or style, definition), that is common to all reflected instances of the declaring IfcObject, or its subtypes.
IFC4 CHANGE  New inverse relationship, change made with upward compatibility for file based exchange.
X
IsTypedByIfcRelDefinesByType
@RelatedObjects
S[0:1]Set of relationships to the object type that provides the type definitions for this object occurrence. The then associated IfcTypeObject, or its subtypes, contains the specific information (or type, or style), that is common to all instances of IfcObject, or its subtypes, referring to the same type.
IFC4 CHANGE  New inverse relationship, the link to IfcRelDefinesByType had previously be included in the inverse relationship IfcRelDefines. Change made with upward compatibility for file based exchange.
X
IsDefinedByIfcRelDefinesByProperties
@RelatedObjects
S[0:?]Set of relationships to property set definitions attached to this object. Those statically or dynamically defined properties contain alphanumeric information content that further defines the object.
IFC4 CHANGE  The data type has been changed from IfcRelDefines to IfcRelDefinesByProperties with upward compatibility for file based exchange.
X
IfcProduct
6ObjectPlacementIfcObjectPlacement? Placement of the product in space, the placement can either be absolute (relative to the world coordinate system), relative (relative to the object placement of another product), or constraint (e.g. relative to grid axes). It is determined by the various subtypes of IfcObjectPlacement, which includes the axis placement information to determine the transformation for the object coordinate system.X
7RepresentationIfcProductRepresentation? Reference to the representations of the product, being either a representation (IfcProductRepresentation) or as a special case a shape representations (IfcProductDefinitionShape). The product definition shape provides for multiple geometric representations of the shape property of the object within the same object coordinate system, defined by the object placement.X
ReferencedByIfcRelAssignsToProduct
@RelatingProduct
S[0:?]Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product.X
IfcElement
8TagIfcIdentifier? The tag (or label) identifier at the particular instance of a product, e.g. the serial number, or the position number. It is the identifier at the occurrence level.X
FillsVoidsIfcRelFillsElement
@RelatedBuildingElement
S[0:1]Reference to the IfcRelFillsElement Relationship that puts the element as a filling into the opening created within another element. X
ConnectedToIfcRelConnectsElements
@RelatingElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element to which this element is connected to. X
IsInterferedByElementsIfcRelInterferesElements
@RelatedElement
S[0:?]Reference to the interference relationship to indicate the element that is interfered. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
IFC4 CHANGE New inverse relationship.
X
InterferesElementsIfcRelInterferesElements
@RelatingElement
S[0:?]Reference to the interference relationship to indicate the element that interferes. The relationship, if provided, indicates that this element has an interference with one or many other elements.
NOTE  There is no indication of precedence between IsInterferedByElements and InterferesElements.
IFC4 CHANGE New inverse relationship.
X
HasProjectionsIfcRelProjectsElement
@RelatingElement
S[0:?]Projection relationship that adds a feature (using a Boolean union) to the IfcBuildingElement.X
ReferencedInStructuresIfcRelReferencedInSpatialStructure
@RelatedElements
S[0:?]Reference relationship to the spatial structure element, to which the element is additionally associated. This relationship may not be hierarchical, an element may be referenced by zero, one or many spatial structure elements.
IFC2x3 CHANGE  The inverse attribute has been added with upward compatibility for file based exchange.
X
HasOpeningsIfcRelVoidsElement
@RelatingBuildingElement
S[0:?]Reference to the IfcRelVoidsElement relationship that creates an opening in an element. An element can incorporate zero-to-many openings. For each opening, that voids the element, a new relationship IfcRelVoidsElement is generated. X
IsConnectionRealizationIfcRelConnectsWithRealizingElements
@RealizingElements
S[0:?]Reference to the connection relationship with realizing element. The relationship, if provided, assigns this element as the realizing element to the connection, which provides the physical manifestation of the connection relationship. X
ProvidesBoundariesIfcRelSpaceBoundary
@RelatedBuildingElement
S[0:?]Reference to space boundaries by virtue of the objectified relationship IfcRelSpaceBoundary. It defines the concept of an element bounding spaces. X
ConnectedFromIfcRelConnectsElements
@RelatedElement
S[0:?]Reference to the element connection relationship. The relationship then refers to the other element that is connected to this element. X
ContainedInStructureIfcRelContainedInSpatialStructure
@RelatedElements
S[0:1]Containment relationship to the spatial structure element, to which the element is primarily associated. This containment relationship has to be hierachical, i.e. an element may only be assigned directly to zero or one spatial structure. X
HasCoveringsIfcRelCoversBldgElements
@RelatingBuildingElement
S[0:?]Reference to IfcCovering by virtue of the objectified relationship IfcRelCoversBldgElement. It defines the concept of an element having coverings associated.X
IfcBuildingElement
IfcStair
9PredefinedTypeIfcStairTypeEnum? Predefined generic type for a stair that is specified in an enumeration. There may be a property set given specifically for the predefined types.
NOTE  The PredefinedType shall only be used, if no IfcStairType is assigned, providing its own IfcStairType.PredefinedType.
IFC4 CHANGE The attribute has been renamed from ShapeType and changed to be OPTIONAL with upward compatibility for file based exchange.
X
Definitions applying to General Usage

 Instance diagram


Concept usage

Object Typing

The Object Typing concept template applies to this entity as shown in Table 171.

HasTypeRelatingType
IfcStairType

Table 171 — IfcStair Object Typing



Property Sets for Objects

The Property Sets for Objects concept template applies to this entity as shown in Table 172.

PsetNameProperties
Pset_StairCommon
TemplatePropertyNameValueReference
Single ValueReferenceIfcIdentifier
Single ValueNumberOfRiserIfcCountMeasure
Single ValueNumberOfTreadsIfcCountMeasure
Single ValueRiserHeightIfcPositiveLengthMeasure
Single ValueTreadLengthIfcPositiveLengthMeasure
Single ValueNosingLengthIfcLengthMeasure
Single ValueWalkingLineOffsetIfcPositiveLengthMeasure
Single ValueTreadLengthAtOffsetIfcPositiveLengthMeasure
Single ValueTreadLengthAtInnerSideIfcPositiveLengthMeasure
Single ValueWaistThicknessIfcPositiveLengthMeasure
Single ValueRequiredHeadroomIfcPositiveLengthMeasure
Single ValueIsExternalIfcBoolean
Single ValueFireRatingIfcLabel
Single ValueFireExitIfcBoolean
Single ValueHandicapAccessibleIfcBoolean
Single ValueHasNonSkidSurfaceIfcBoolean
Enumerated ValueStatusIfcLabel
Pset_ConcreteElementGeneral
TemplatePropertyNameValue
Single ValueConstructionMethodIfcLabel
Single ValueStructuralClassIfcLabel
Single ValueStrengthClassIfcLabel
Single ValueExposureClassIfcLabel
Single ValueReinforcementVolumeRatioIfcMassDensityMeasure
Single ValueReinforcementAreaRatioIfcAreaDensityMeasure
Single ValueDimensionalAccuracyClassIfcLabel
Single ValueConstructionToleranceClassIfcLabel
Single ValueConcreteCoverIfcPositiveLengthMeasure
Single ValueConcreteCoverAtMainBarsIfcPositiveLengthMeasure
Single ValueConcreteCoverAtLinksIfcPositiveLengthMeasure
Single ValueReinforcementStrengthClassIfcLabel
Pset_PrecastConcreteElementFabrication
TemplatePropertyNameValue
Single ValueTypeDesignatorIfcLabel
Single ValueProductionLotIdIfcIdentifier
Single ValueSerialNumberIfcIdentifier
Single ValuePieceMarkIfcLabel
Single ValueAsBuiltLocationNumberIfcLabel
Single ValueActualProductionDateIfcDateTime
Single ValueActualErectionDateIfcDateTime
Pset_PrecastConcreteElementGeneral
TemplatePropertyNameValue
Single ValueTypeDesignatorIfcLabel
Single ValueCornerChamferIfcPositiveLengthMeasure
Single ValueManufacturingToleranceClassIfcLabel
Single ValueFormStrippingStrengthIfcPressureMeasure
Single ValueLiftingStrengthIfcPressureMeasure
Single ValueReleaseStrengthIfcPressureMeasure
Single ValueMinimumAllowableSupportLengthIfcPositiveLengthMeasure
Single ValueInitialTensionIfcPressureMeasure
Single ValueTendonRelaxationIfcPositiveRatioMeasure
Single ValueTransportationStrengthIfcPressureMeasure
Single ValueSupportDuringTransportDescriptionIfcText
Single ValueHollowCorePluggingIfcLabel
Single ValueCamberAtMidspanIfcRatioMeasure
Single ValueBatterAtStartIfcPlaneAngleMeasure
Single ValueBatterAtEndIfcPlaneAngleMeasure
Single ValueTwistingIfcPlaneAngleMeasure
Single ValueShorteningIfcRatioMeasure
Single ValuePieceMarkIfcLabel
Single ValueDesignLocationNumberIfcLabel
Pset_EnvironmentalImpactIndicators
TemplatePropertyNameValueReference
Single ValueReferenceIfcIdentifier
Single ValueFunctionalUnitReferenceIfcLabel
Single ValueUnitIfcText
Single ValueExpectedServiceLifeIfcTimeMeasure
Single ValueTotalPrimaryEnergyConsumptionPerUnitIfcEnergyMeasure
Single ValueWaterConsumptionPerUnitIfcVolumeMeasure
Single ValueHazardousWastePerUnitIfcMassMeasure
Single ValueNonHazardousWastePerUnitIfcMassMeasure
Single ValueClimateChangePerUnitIfcMassMeasure
Single ValueAtmosphericAcidificationPerUnitIfcMassMeasure
Single ValueRenewableEnergyConsumptionPerUnitIfcEnergyMeasure
Single ValueNonRenewableEnergyConsumptionPerUnitIfcEnergyMeasure
Single ValueResourceDepletionPerUnitIfcMassMeasure
Single ValueInertWastePerUnitIfcMassMeasure
Single ValueRadioactiveWastePerUnitIfcMassMeasure
Single ValueStratosphericOzoneLayerDestructionPerUnitIfcMassMeasure
Single ValuePhotochemicalOzoneFormationPerUnitIfcMassMeasure
Single ValueEutrophicationPerUnitIfcMassMeasure
Enumerated ValueLifeCyclePhaseIfcLabel
Pset_EnvironmentalImpactValues
TemplatePropertyNameValue
Single ValueTotalPrimaryEnergyConsumptionIfcEnergyMeasure
Single ValueWaterConsumptionIfcVolumeMeasure
Single ValueHazardousWasteIfcMassMeasure
Single ValueNonHazardousWasteIfcMassMeasure
Single ValueClimateChangeIfcMassMeasure
Single ValueAtmosphericAcidificationIfcMassMeasure
Single ValueRenewableEnergyConsumptionIfcEnergyMeasure
Single ValueNonRenewableEnergyConsumptionIfcEnergyMeasure
Single ValueResourceDepletionIfcMassMeasure
Single ValueInertWasteIfcMassMeasure
Single ValueRadioactiveWasteIfcMassMeasure
Single ValueStratosphericOzoneLayerDestructionIfcMassMeasure
Single ValuePhotochemicalOzoneFormationIfcMassMeasure
Single ValueEutrophicationIfcMassMeasure
Single ValueLeadInTimeIfcDuration
Single ValueDurationIfcDuration
Single ValueLeadOutTime
Pset_Condition
TemplatePropertyNameValue
Single ValueAssessmentDateIfcDate
Single ValueAssessmentConditionIfcLabel
Single ValueAssessmentDescriptionIfcText
Pset_ManufacturerOccurrence
TemplatePropertyNameValueReference
Single ValueAcquisitionDateIfcDate
Single ValueBarCodeIfcIdentifier
Single ValueSerialNumberIfcIdentifier
Single ValueBatchReferenceIfcIdentifier
Enumerated ValueAssemblyPlaceIfcLabel
Pset_ManufacturerTypeInformation
TemplatePropertyNameValueReference
Single ValueGlobalTradeItemNumberIfcIdentifier
Single ValueArticleNumberIfcIdentifier
Single ValueModelReferenceIfcLabel
Single ValueModelLabelIfcLabel
Single ValueManufacturerIfcLabel
Single ValueProductionYearIfcLabel
Enumerated ValueAssemblyPlaceIfcLabel
Pset_ServiceLife
TemplatePropertyNameValueUpperValueLowerValueSetValue
Single ValueMeanTimeBetweenFailureIfcDuration
Bounded ValueServiceLifeDurationIfcDuration
Pset_Warranty
TemplatePropertyNameValue
Single ValueWarrantyIdentifierIfcIdentifier
Single ValueWarrantyStartDateIfcDate
Single ValueWarrantyEndDateIfcDate
Single ValueIsExtendedWarrantyIfcBoolean
Single ValueWarrantyPeriodIfcTimeMeasure
Single ValueWarrantyContentIfcText
Single ValueExclusionsIfcText

Table 172 — IfcStair Property Sets for Objects



Material Solid

The Material Single concept applies to this entity.

The material of the IfcStair is defined by the IfcMaterial and attached by the IfcRelAssociatesMaterial.RelatingMaterial. It is accessible by the inverse HasAssociations relationship.

Material information can also be given at the IfcStairType, defining the common attribute data for all occurrences of the same type. It is then accessible by the inverse IsDefinedBy relationship pointing to IfcStair.HasAssociations and via IfcRelAssociatesMaterial.RelatingMaterial to IfcMaterial. If both are given, then the material directly assigned to IfcStair overrides the material assigned to IfcStairType.



Spatial Containment

The Spatial Containment concept template applies to this entity as shown in Table 173.

RelatingStructureDescription
IfcBuildingStoreyDefault spatial container
IfcBuildingSpatial container for the element if it cannot be assigned to a building storey
IfcSiteSpatial container for the element in case that it is placed on site (outside of building)

Table 173 — IfcStair Spatial Containment

The IfcStair, as any subtype of IfcBuildingElement, may participate alternatively in one of the two different containment relationships:



Element Decomposition

The Element Decomposition concept template applies to this entity as shown in Table 174.

IsDecomposedByRelatedObjectsDescription
IfcStairFlightStairs may be decomposed into stair flights.
IfcSlabStairs may be decomposed into stair landing, represented by IfcSlab.PredefinedType=LANDING
IfcRailingStairs may be decomposed into railings for zero, one, or both sides.

Table 174 — IfcStair Element Decomposition

Geometric representation by aggregated elements

If the IfcStair has components (referenced by SELF\IfcObject.IsDecomposedBy) with own 'Body' representation, then no 'Body' representation shall defined for the IfcStair. The IfcStair shape is then represented by the geometric representation of its components. The components are accessed via SELF\IfcObject.IsDecomposedBy[1].RelatedObjects.

Figure 251 illustrates stair placement, where the IfcStair defines the local placement for all components and the common 'Axis' representation, and each component has its own 'Body' representation.

stair

Figure 251 — Stair placement



Placement

The Product Local Placement concept template applies to this entity as shown in Table 175.

HasPlacementRelativeToElementDescription
IfcLocalPlacementRelative placement according to position and rotation relative to container.

Table 175 — IfcStair Product Local Placement

The following restriction may be imposed by view definitions or implementer agreements:



Axis 2D Geometry

The Axis 2D Geometry concept applies to this entity.

The walking line is represented by a two-dimensional open curve as the axis. The curve is directed into the upward direction (direction has to be interpreted as specified at the subtypes of IfcCurve).

NOTE  The 'Axis' representation of IfcStair may be provided even if the IfcStair has components with own shape representations.


Body SweptSolid Geometry

The Body SweptSolid Geometry concept applies to this entity.



mvdXML Specification
<?xml version="1.0"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="4a498025-8a1f-4038-a303-d541bb74d2fc" name="IfcStair" status="sample" applicableRootEntity="IfcStair">
  <Applicability uuid="00000000-0000-0000-0000-000000000000" status="sample">
    <Template ref="354161a7-9038-4007-bd48-b0075cb6eb2a" />
    <TemplateRules operator="and" />
  </Applicability>
  <Concepts>
    <Concept uuid="a0c46600-f44b-4f08-8a23-2132a8ac17d4" name="Object Typing" status="sample" override="false">
      <Template ref="35a2e10e-20df-40f4-ab2f-dacf0a6744f4" />
      <TemplateRules operator="and">
        <TemplateRule Parameters="RelatingType[Type]='IfcStairType'" />
      </TemplateRules>
    </Concept>
    <Concept uuid="9d3bc6d5-0583-4dea-b75f-f32076bc60bb" name="Property Sets for Objects" status="sample" override="false">
      <Template ref="f74255a6-0c0e-4f31-84ad-24981db62461" />
      <TemplateRules operator="and">
        <TemplateRule Parameters="PsetName[Value]='Pset_StairCommon'" />
        <TemplateRule Parameters="PsetName[Value]='Pset_ConcreteElementGeneral'" />
        <TemplateRule Parameters="PsetName[Value]='Pset_PrecastConcreteElementFabrication'" />
        <TemplateRule Parameters="PsetName[Value]='Pset_PrecastConcreteElementGeneral'" />
      </TemplateRules>
    </Concept>
    <Concept uuid="0f65fd72-14e6-4ba2-a72d-fa26ba8f5d93" name="Material Solid" status="sample" override="false">
      <Template ref="5f39a814-44a0-4fb3-8dc6-ddaa0560fc54" />
    </Concept>
    <Concept uuid="1421e6d1-c993-40eb-b159-4a1468ade509" name="Spatial Containment" status="sample" override="false">
      <Template ref="d9a3f822-0014-4bc2-8d94-9d9067759045" />
      <TemplateRules operator="and">
        <TemplateRule Description="Default spatial container" Parameters="RelatingStructure[Type]='IfcBuildingStorey'" />
        <TemplateRule Description="Spatial container for the element if it cannot be assigned to a building storey" Parameters="RelatingStructure[Type]='IfcBuilding'" />
        <TemplateRule Description="Spatial container for the element in case that it is placed on site (outside of building)" Parameters="RelatingStructure[Type]='IfcSite'" />
      </TemplateRules>
    </Concept>
    <Concept uuid="1fe0abcf-28f4-40b5-9edb-0254328b48f8" name="Element Decomposition" status="sample" override="false">
      <Template ref="8a27c15a-c4ea-4ca9-8cce-7fbba1c9bce0" />
      <TemplateRules operator="and">
        <TemplateRule Description="Stairs may be decomposed into stair flights." Parameters="RelatedObjects[Type]='IfcStairFlight'" />
        <TemplateRule Description="Stairs may be decomposed into stair landing, represented by IfcSlab.PredefinedType=LANDING" Parameters="RelatedObjects[Type]='IfcSlab'" />
        <TemplateRule Description="Stairs may be decomposed into railings for zero, one, or both sides." Parameters="RelatedObjects[Type]='IfcRailing'" />
      </TemplateRules>
    </Concept>
    <Concept uuid="93363dea-f0a0-4e4c-b841-480ea91e477b" name="Placement" status="sample" override="false">
      <Template ref="cbe85b5f-7912-4a43-8bb7-1e63bf40b26d" />
    </Concept>
    <Concept uuid="1873b460-0c20-4f13-9529-b4ef73ee4309" name="Axis 2D Geometry" status="sample" override="false">
      <Template ref="782444e8-d681-475a-9034-a9e7f53c6d65" />
    </Concept>
    <Concept uuid="f28febf8-dfe1-4c7d-8a8f-d23c9ebf5849" name="Body SweptSolid Geometry" status="sample" override="false">
      <Template ref="cb7c18fa-cf83-4db1-be1b-c013ba4ed672" />
    </Concept>
  </Concepts>
</ConceptRoot>
Concept inheritance

#ConceptTemplateModel View
IfcRoot
IdentitySoftware IdentityGeneral Usage
Revision ControlRevision ControlGeneral Usage
IfcObjectDefinition
Classification AssociationClassification AssociationGeneral Usage
IfcObject
Object User IdentityObject User IdentityGeneral Usage
Object Predefined TypeObject Predefined TypeGeneral Usage
Property Sets with OverrideProperty Sets with OverrideGeneral Usage
IfcProduct
Product PlacementProduct PlacementGeneral Usage
Product Geometric RepresentationProduct Geometric RepresentationGeneral Usage
IfcElement
CoG GeometryCoG GeometryGeneral Usage
Box GeometryBox GeometryGeneral Usage
FootPrint GeometryFootPrint GeometryGeneral Usage
Body SurfaceOrSolidModel GeometryBody SurfaceOrSolidModel GeometryGeneral Usage
Body SurfaceModel GeometryBody SurfaceModel GeometryGeneral Usage
Body Tessellation GeometryBody Tessellation GeometryGeneral Usage
Body Brep GeometryBody Brep GeometryGeneral Usage
Body AdvancedBrep GeometryBody AdvancedBrep GeometryGeneral Usage
Body CSG GeometryBody CSG GeometryGeneral Usage
Mapped GeometryMapped GeometryGeneral Usage
Element VoidingElement VoidingGeneral Usage
Element ProjectingElement ProjectingGeneral Usage
IfcBuildingElement
Product AssignmentProduct AssignmentGeneral Usage
Surface 3D GeometrySurface 3D GeometryGeneral Usage
IfcStair
Object TypingObject TypingGeneral Usage
Property Sets for ObjectsProperty Sets for ObjectsGeneral Usage
Material SolidMaterial SingleGeneral Usage
Spatial ContainmentSpatial ContainmentGeneral Usage
Element DecompositionElement DecompositionGeneral Usage
PlacementProduct Local PlacementGeneral Usage
Axis 2D GeometryAxis 2D GeometryGeneral Usage
Body SweptSolid GeometryBody SweptSolid GeometryGeneral Usage
Formal representations
XML Specification
 <xs:element name="IfcStair" type="ifc:IfcStair" substitutionGroup="ifc:IfcBuildingElement" nillable="true"/>
 <xs:complexType name="IfcStair">
  <xs:complexContent>
   <xs:extension base="ifc:IfcBuildingElement">
    <xs:attribute name="PredefinedType" type="ifc:IfcStairTypeEnum" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcStair
 SUBTYPE OF (IfcBuildingElement);
  PredefinedType : OPTIONAL IfcStairTypeEnum;
 WHERE
  CorrectPredefinedType : NOT(EXISTS(PredefinedType)) OR
(PredefinedType <> IfcStairTypeEnum.USERDEFINED) OR
((PredefinedType = IfcStairTypeEnum.USERDEFINED) AND EXISTS (SELF\IfcObject.ObjectType));
  CorrectTypeAssigned : (SIZEOF(IsTypedBy) = 0) OR
('IFCSHAREDBLDGELEMENTS.IfcStairType' IN TYPEOF(SELF\IfcObject.IsTypedBy[1].RelatingType));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram

Link to this page  Link to this page
